Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying

China Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying supplier
Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying supplier Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying supplier Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying supplier Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying supplier Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying supplier Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying supplier

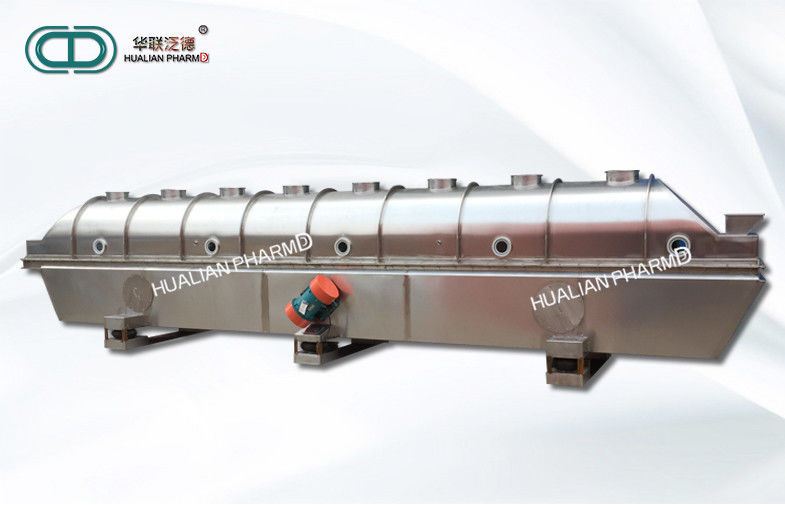

Large Image :  Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying

Product Details:

Place of Origin: CHINA
Brand Name: HUALIAN PHARMD
Certification: ISO,GMP
Model Number: FD-ZLG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: standard wooden case
Delivery Time: 15 Set/Sets per Month
Payment Terms: L/C, T/T
Supply Ability: 80
Contact Now
Detailed Product Description
Model No: FD-ZLG Type: Fluid Bed Drying Equipment
Voltage: 220-440v Power(W): 1-11kw
Dimension(L*W*H): Based On Actual Design Weight:: 1240-8600kg
Certification: ISO9001:2008 CE Control System: Touch Screen
Heating Source: Hot Air Furnace Or Steam
High Light:

industrial vacuum dryer

,

film coating machine

Ectilinear Vibrating-Fluidizing Drying Equipment for Foodstuff Industry for Foodstuff Industry



ZLG Series vibrating fluid bed dryer ​​


Product overview:

As the material is fluidized by mechanical vibration in the drying process, it is not only conducive to turbulent flow in the boundary layer and enhanced heat and mass transfer, but also ensures that the drying equipment works under relatively stable flow mechanics conditions. This kind of equipment besides has very good dry function, still can be attached according to the craft need the craft and so on material granulation, cooling, sieving and transportation. At present, it has been widely used in sugar, medicine, chemical fertilizer, plastics, dairy, salt, mining, metallurgy and other industrial sectors. This technology is basically mature, and has formed a series.

Principle:

Vibrating motor provides excitation force, so that materials jump forward in the airdistributor, simultaneously contact with hot air from the bottom of distributor,heat and mass transfer, so that the wet materials were endothermic vaporizationand taken away by air. Material is discharge from the end of fluidized bed . Whileair temperature dropped, in the process, the hot air will drain away. After thecollection of fine solid separator, exhaust emissions away by the suction fan. Theparameters can be convenient to change the system processing capabilities

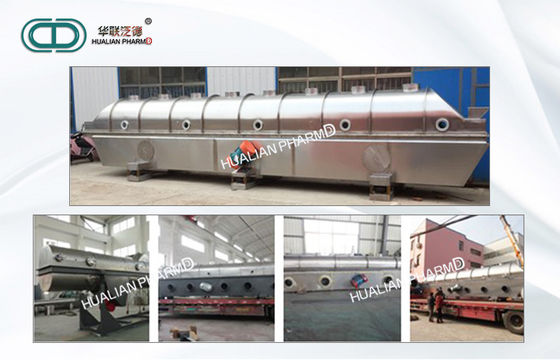

Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying



Application​:

1. Pharmaceutical and chemical industries :all kinds of granular tablet and granule,boric acid,borax dihydroxy benzene, malic acid, maleic acid and so on;
2. Foodstuff and construction material industries : less, monsodium glutamate,edible sugar, edible salt, mine residue, bean, seeds and so on;
3. It can also used for raw materials to add up damp or cooling and so on;
4. Cellulose: carboxymethyl cellulose cmc of.

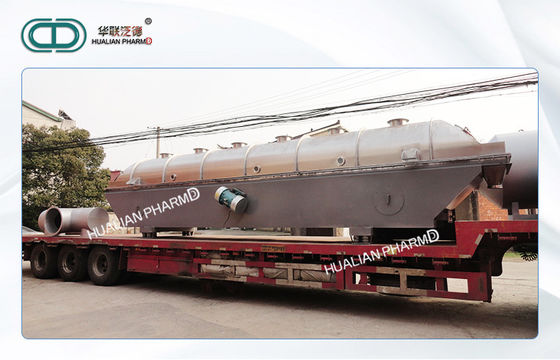

Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying

Technical characters:

1. Due to the imposed vibration can make the minimum flow of the gas velocitydecreased, and thus can significantly reduce the air requirement, therebyreducing dustentrainment, supporting heat, blower, cyclone separator can also becorrespondinglynarrow specifications, complete sets of equipment cost will bedecreased subtantillysignificant energy saving effect.
2. Can be easily rely on to adjust the vibration parameters to change the materialresidence time in the machine. The pistonflow run to reduce the particlesize uniformity and regularity. easy to obtain uniform drying products.
3. Help material dispersed by vibration, such as to select the appropriate vibrationparameters, the ordinary fluidized bed agglomeration or materials likely togeneratechanneling the smooth flow of dry.
4. As the intense back mixing, air velocity is low compared to ordinary fluidized bedmaterial particle damage. Consumable materials, and asked not to damage thecrystalor particle surface brightness requirements of the most suitable materialduring the drying process.

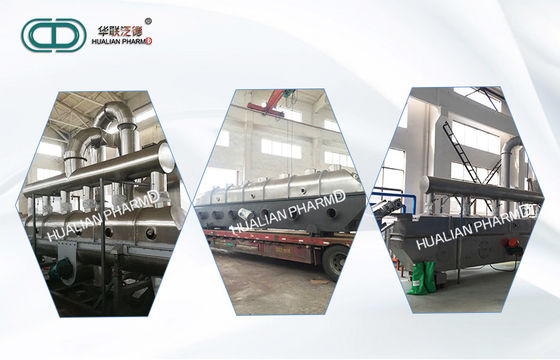

Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying

Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying

Main Technical Parameter:

Model Area of
fluidized-bed(㎡)
ETemperature of
inlet air (℃)
Temperature of
outlet ()
Capacity to vapormoisture(kg/h) Vibration motor
Model Model
ZLG3x 0.30 0.9 70~140 40~70
20~35
ZDS31- 6
0.8x 2
ZLG4.5x0.30 1.35 35~ 50 ZDS31- 6 0.8x 2
ZLG4.5x0.45 2.025 50~ 70 ZDS32- 6 1.1x2
ZLG4.5x0.60 2.7 70~ 90 ZDS32- 6 1.1x2
ZLG6x0.45 2.7 80~ 100 ZDS41- 6 1.5x2
ZLG6x0.60 3.6 100~ 130 ZDS41- 6 1.5x2
ZLG6x0.75 4.5 120~ 140 ZDS42- 6 2.2x 2
ZLG6x0.9 5.4 140~1 70 ZDS42- 6 2.2x 2
ZLG7.5x0.6 4.5 130~ 150 ZDS42- 6 2.2x 2
ZLG7.5x0.75 5.625 150~ 180 ZDS51- 6 3.0x 2
ZLG7.5x0.9 6.75 160~ 210 ZDS51- 6 3.0x 2
ZLG7.5x1.2 9.0 200~ 280 ZDS51- 6 3.0x 2



Dimension(mm)/Model

A B C D E F Weight(Kg)
ZLG3 X 0.30 3000 300 1350 900 430 1650 1250
ZLG4.5x 0.30 4500 300 1350 900 430 1650 1560
ZLG4.5x0.45 4500 450 1550 950 430 1700 1670
ZLG4.5x0.60 4500 600 1650 950 430 1700 1910
ZLG6x0.45 6000 450 1650 950 430 1700 2100
ZLG6x0.60 6000 600 1700 1000 500 1700 2410
ZLG6x0.75 6000 750 1850 1000 600 1850 2340
ZLG6x0.9 6000 900 2000 1000 600 1850 3160
ZLG7.5x0.6 7500 600 1850 1000 600 1850 3200
ZLG7.5x0.75 7500 750 2000 1000 600 1850 3600
ZLG7.5x0.9 7500 900 2100 1000 600 1850 4140
ZLG7.5x1.2 7500 1200 2500 1150 800 2050 5190

Schematic of installation:

Foodstuff Industry Pharmaceutical Machinery Ectilinear Vibrating Fluidizing Drying
