    Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment

    Product Details:

    Place of Origin: ZHEJIANG
    Brand Name: HUALIAN EYSET
    Certification: CE
    Model Number: YS-ZHA 300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 22000- 29000/SET
    Packaging Details: standard wooden case
    Delivery Time: 35 days
    Payment Terms: L/C, T/T
    Supply Ability: 200sets/month
    Get Best Price Contact Now

    Detail Information

    Model: YS-ZHA 300 Width Of Unwinding: 620mm
    Diameter Of Unwinding: Ø600mm Diameter Of Rewinding: Ø700mm
    Min. Sealing Size (mold-less): 80mm Min. Sealing Size (plates): 30mm
    Max Working Speed: 400m/min Dimension: 2500x1300x1600mm
    High Light:

    sleeve seaming machine

    ,

    paper roll slitter rewinder

    Product Description

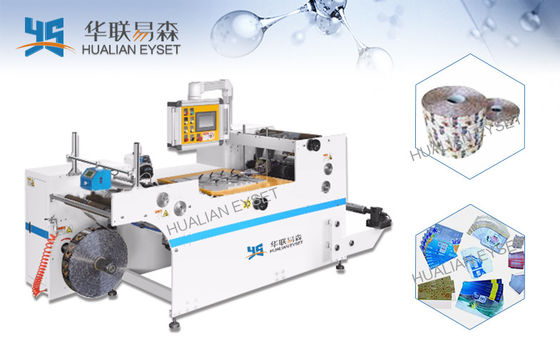

    Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment

    Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment 0Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment 1

    Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment 2Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment 3

    Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment 4

    Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment 5

    Glue Sealing Slitting And Rewinding Machine / Shrinkable Film Slitting Equipment 6

    1. Application:

    The machine is specialized in folding and gluing PVC ,PET ,PETG,OPS shrinkage film to shrink sleeve label roll . The label is widely used in packing beverage, food , batteries, cap , chemical industry, cosmetics, etc. The machine works more stably and efficiently because of excellent tension control system ,intelligent gluing system and reasonable design of mechanical structure . It is necessary equipment in shrink sleeve label production.

    2. Main Technical Parameter:

    Model YS-ZHA 300mm
    Width of Unwinding 620mm
    Diameter of Unwinding Ø600mm
    Diameter of Rewinding Ø700mm
    Min. Sealing size (mold-less) 80mm
    Min. sealing size (plates) 30mm
    Max. Sealing size 300mm
    Max Working Speed 400m/min
    Voltage of Whole Machine 220V,1phase, 60hz
    Dimension of Whole Machine 2500x1300x1600mm

    3. Features:

    1)Stable and heavy-duty frame for high speed operation of 400n/min.

    2) Adjustable forming plate creates efficient operation.

    3) Auto solvent feeding control.

    4) Auto tension control for unwind/rewind unit to maintain the optimun tension.

    5) Good brand EPC device, precision 0.1mm.

    6) Accurate product width.

    7) Cantilevered rewind/unwind shaft for fast roll changeover.

    8) PLC with color touch screen control system.

    9) Copper tubing with felted wool for gluing, work with glue pump (dispenser) and PLC. The PLC can control the glue capacity with speed changes.

    10) Rewind oscillation control to produce high quality rolls.

    11) Static eliminator is adopted before rewinder.

    12) Whole machine with 4 pcs of servo motors(2 for traction, 1 for rewinder, 1 for oscillation), and 1pc magnetic powder brake for unwinder.

    13) Linear perforation.

    14) traditional aluminum plates forming device for sizes from 30-80mm.

    15) auto stop when the rolls finish.

    4. Optional devices:

    • 6inch air shaft for rewinder
    • Nordson Needle gluing system
    • Sleeve Width checking system, BST brand(Max checking width 284mm)

     5. Main configuration:



    PLC MITSUBISHI JAPAN
    Touch screen MCGS CHINA
    Main servo motor YASKAWA JAPAN
    Main servo motor drive YASKAWA JAPAN
    Unwind servo motor YASKAWA JAPAN
    Unwind servo motor drive YASKAWA JAPAN
    Rewind servo motor YASKAWA JAPAN
    Rewind servo motor drive YASKAWA JAPAN
    EPC controller PAUSOURCE TAIWAN
    EPC drive PAUSOURCE TAIWAN
    EPC ultrasonic sensor PAUSOURCE TAIWAN
    Glue pump CHUANRUI CHINA
    Unwind magnetic brake WEIZHENG TAIWAN
    Rewinding vibrating servo motor YASKAWA JAPAN
    Rewinding vibrating servo motor drive YASKAWA JAPAN
    Main bearing NSK JAPAN
    Guide rail TBI TAIWAN
    Low-voltage apparatus SCHNEIDER FRANCE
    Button and switch SCHNEIDER FRANCE
    Anti-static bar for rewinder A&P China
    Air shaft for unwinder 76mm, China brand
    Air shaft for rewinder 76mm, China brand
    LED Light for checking China brand
