    Automatic Commercial Dehumidifier Microcomputer Control -model YS-15S

    Product Details:

    Place of Origin: CHINA
    Brand Name: HUALIAN YIMIN
    Certification: CE,ISO
    Model Number: YC-15S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: AS NEGOTIABLE
    Packaging Details: standard export wooden case
    Delivery Time: 60 days
    Payment Terms: L/C, T/T, D/A
    Supply Ability: 50 sets/month
    Get Best Price Contact Now

    Detail Information

    Model: YC-15S Power Supply(V/Hz): 380/50
    Power(Kw): 7.2 Current(A): 11
    Weight(Kg): 260 Product Name: Automatic Commercial Dehumidifier
    High Light:

    small commercial dehumidifier

    ,

    large room dehumidifier

    Product Description

    Automatic Commercial Dehumidifier Microcomputer Control -model YS-15S

    Industrial Dehumidifier YC-15S



    Applicable scope of dehumidifier:

    power distribution room, electronic room, basement, warehouse, civil air defense project, underground garage, archives room, pharmaceutical factory, drying room, library, storage room, printing factory, painting room, bank vault, food factory, museum, laboratory and other places with requirements on humidity.

    The product description

    1. Rotary compressor is adopted.

    2. Three-minute automatic time-delay protection compressor.

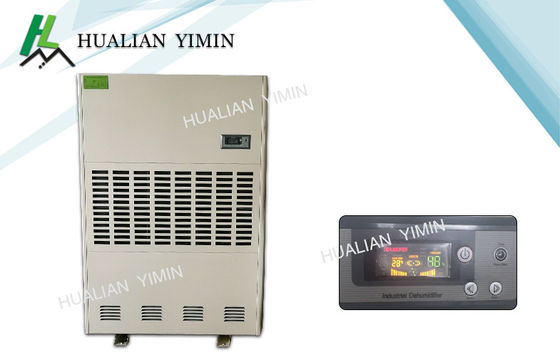

    3. Microcomputer control, more accurate control of humidity. Liquid crystal display.

    4. Set humidity freely.

    5. Beautiful design, plastic steel shell, solid and reliable.

    6. Low noise.

    7. Automatic cream.

    8. The Self - defrosting.

    9. Universal wheel sole. Easy to move.

    Parameter table

    Model YC-15S YC-20S YC-25S YC-30S YC-40S
    Power Supply(V/Hz) 380/50 380/50 380/50 380/50 380/50
    Power(Kw) 7.2 10 12 13.8 18
    Current(A) 6.0 9.0 10 21.8 31
    Temperature 5~38℃ 5~38℃ 5~38℃ 5~38℃ 5~38℃
    Dimension(L*W*H) 1240X450X1700mm 1240X450X1700mm 1240X450X1700mm 600X1750X2000mm 650x1850x2100
    Weight(Kg) 260 300 320 380 425

     Purpose of dehumidification

    Excessive humidity in the environment is not easy to be discharged in a tight building, while excessive humidity will affect the air quality in the workshop and cause harm to the storage or materials in the workshop. This phenomenon is more serious in the meiyu season in the middle and lower reaches of the Yangtze river. The humidity of the industrial dehumidifier is set between 30% and 90%RH, which can easily remove the excess moisture in the air.

    Product advantage:

    High quality movement, large air intake, working efficiency far higher than the industry level.

    Humidity display, humidity setting, full automation.

    Quality assurance, brand compressor, quality assurance.

    Automatic defrostingIntelligent low temperature defrosting ensures dehumidification efficiency.

    Coarse filter.

    Built-in coarse effect filter screen to filter out dust, etc.

    Automatic Commercial Dehumidifier Microcomputer Control -model YS-15S 0
    Structure and working principle of dehumidifier:

    Dehumidifier is by compressor, two (evaporator and condenser), fan, radiator (straight pipes), chassis and controller, its working principle is: the fan will be moist air in the form of negative pressure suction machine, through the compressor refrigeration system will fall below the air dew point temperature of the evaporator surface, the moist air through the evaporator water will break down when the air out and attached to the surface of the evaporator (note: we took a bottle of water from the fridge, like summer, for a moment the bottle there was a layer of condensed water outside the same principle), water will flow down the evaporator on the hydrophilic platinum to drain the water tank to flow into the tank or discharge, Dehumidified dry cold air through the condenser heat recovery after heating the heat will be dry air in a positive pressure way out of the machine, so that the circulation of the wet room to dry effect.

    Automatic Commercial Dehumidifier Microcomputer Control -model YS-15S 1

    Automatic Commercial Dehumidifier Microcomputer Control -model YS-15S 2



    Automatic Commercial Dehumidifier Microcomputer Control -model YS-15S 3
