    High Efficiency Vertical Fluid Bed Dryer Granulator For Milk Juice Powder Granules

    Product Details:

    Place of Origin: CHINA
    Brand Name: HUALIAN PHARMD
    Certification: ISO,GMP
    Model Number: FD-GFG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: standard wooden case
    Delivery Time: 50 DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 80 sets/month
    Get Best Price Contact Now

    Detail Information

    Model No: FD-GFG Quantity Of Baking Tray: 20
    Layers Of Baking Support: 5 Weight Of Drying Chamber(kg)Kg): 250
    Weight Of Drying Chamber(kg): 1400 Product Name: Boiling Fluid Bed Dryer
    High Light:

    high speed mixing granulator

    ,

    vibrating fluid bed dryer

    Product Description

    High Efficiency Vertical Fluid Bed Dryer Granulator For Milk Juice Powder Granules



    GFG Series High-Efficiency Fluidizing Dry



    Introduction:

    GFG series high efficiency boiling dryer is a new high efficiency boiling dryer developed for GMP pharmaceutical engineering. The equipment is composed of air filter, heater, main engine, skip, ash removal chamber, connected air pipe, fan, silencer, etc..

    Principle:

    When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In workingchamber the state of fluidization is formed through strring and negative effect.The moisture is evaporated and removed rapidly and the material is dried quickly.

    Application​:

    1. Mechanism screw extrusion granule, swing granule, wet mixed granule.
    2. Drying of wet granule and powder materials in medicine, food, feed, chemical industry and other fields.
    3. Large particle, small block, sticky block granular material.
    4. Konjac, polyacrylamide and other dry materials of volume change.

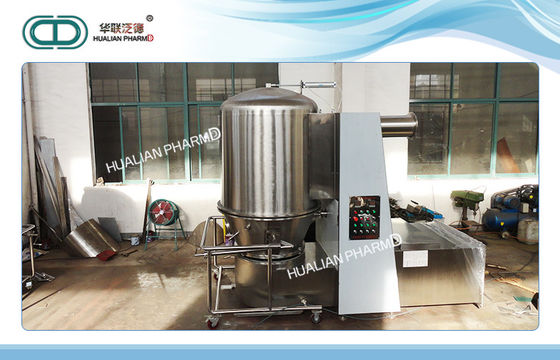

    High Efficiency Vertical Fluid Bed Dryer Granulator For Milk Juice Powder Granules 0

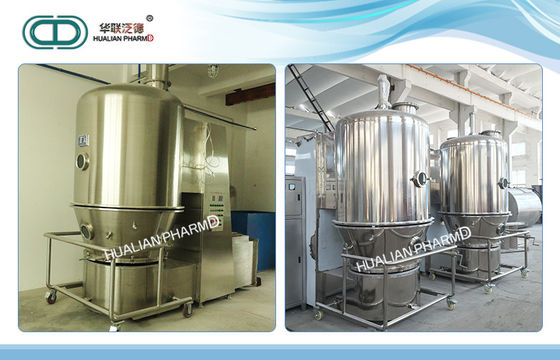

    High Efficiency Vertical Fluid Bed Dryer Granulator For Milk Juice Powder Granules 1

    Technical characters:

    1. The structure of fluidized bed is round so as to avoid dead corner;
    2. Inside the hopper there is a stirer in order to avoid agglomeration of rawmaterial and forming canal of flow;
    3. The granule is discharged through the method of turning over. In this way it is .very convenient and full. The discharging system can be designed as request too;
    4. It is operated at the conditions of negative pressure and seal. The air is filtered.Therefore it is simple in operation and convenient in clean. It is an ideal equipmentthat is in conformity with the requirements of GMP;
    5. The drying speed is fast and the temperature is uniform. In general the. dryingtime is 20- 30 minutes for each batch.

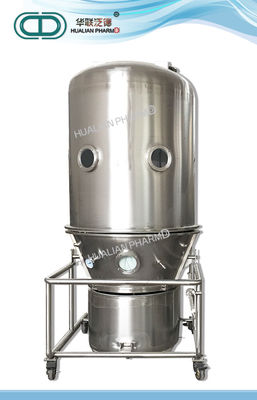

    High Efficiency Vertical Fluid Bed Dryer Granulator For Milk Juice Powder Granules 2

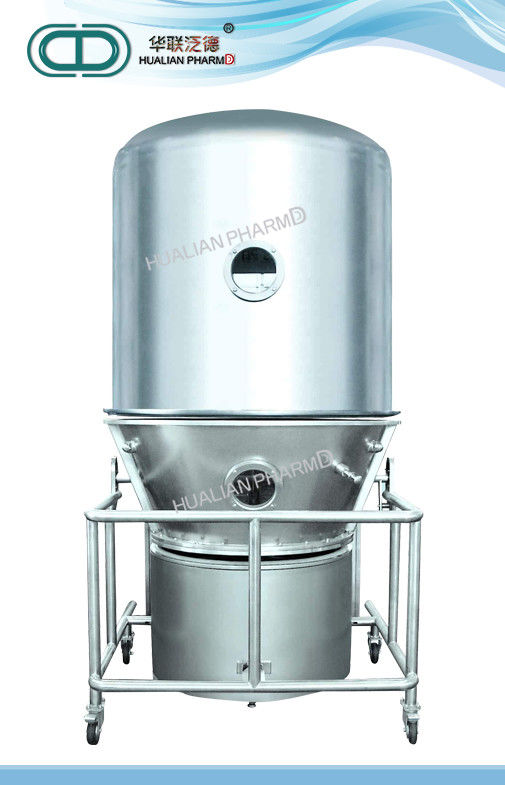

    High Efficiency Vertical Fluid Bed Dryer Granulator For Milk Juice Powder Granules 3

    Main Technical Parameter:

                            Item Unit                                     Type
    Raw material
    kg

    60
    100 120 150 200 300 500
    Fan Air volume m³/h 2361 3488 4000 4901 6032 7800 10800
    Air pressure mmH₂O 594 533 533 679 787 950 950
    Power KW 7.5 11 12 18.5 22 30 45
    Stirring power KW 0.55 0.55 0.55 0.55 0.75 0.75 1.1
    Stirring speed r.p.m                                            11
    Consumption of steam Kg/h 141 170 170 240 282 366 451
    Time of operation min                                          15-30
    Height of mainmachine Square min 2750 2850 2850 2900 3100 3300 3650
    Round min 2700 2900 2900 2900 3100 3600 3950

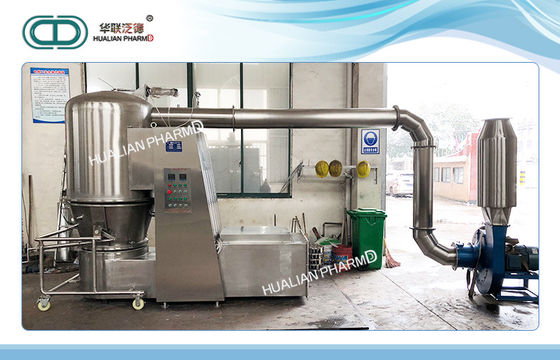

    Schematic of installation:

    High Efficiency Vertical Fluid Bed Dryer Granulator For Milk Juice Powder Granules 4
