Sieve Squeezes Wet Revolving Granulator / Banlangen Granules Rotary Pelletizer
|Place of Origin:||CHINA|
|Brand Name:||HUALIAN PHARMD|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||standard wooden case|
|Delivery Time:||50 DAYS|
|Payment Terms:||L/C, T/T|
high speed mixing granulator,
vibrating fluid bed dryer

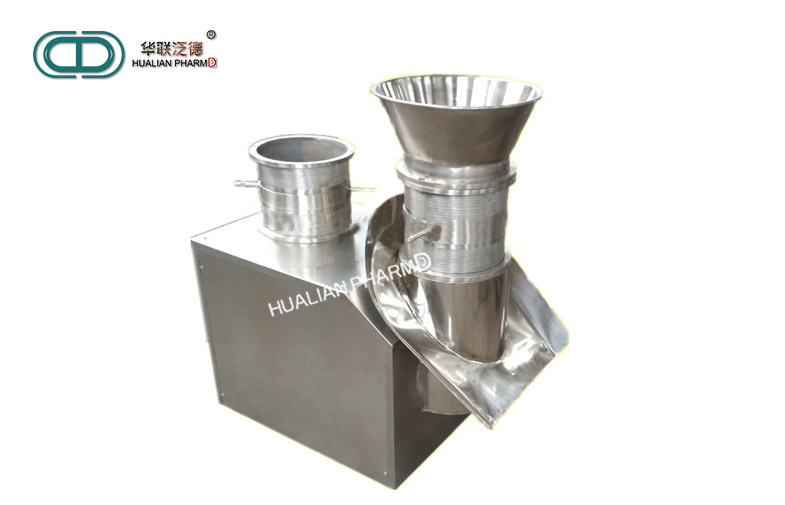

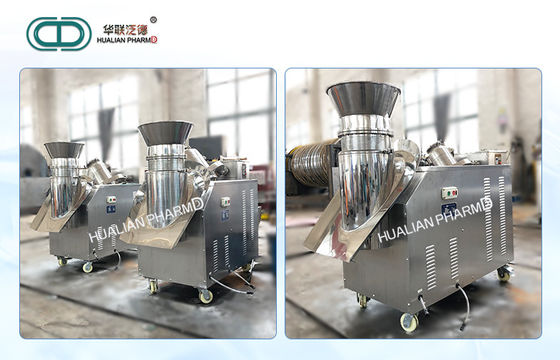

FD-ZBL Series Revolving Cranulator
1. The size of spherical particles produced is between 0.5 mm and 2.0mm.
2, can be round long particles into round particles.
3. Simple operation and short production time.
Powder material by vibration hopper by the horizontal screw feeder, quantitative evenly and flaking.then, the flaking cooked inside keep a constant feed grain, and the rolled piece inside the main ingredient of vertical spiral cone precompression on powder and piped to an arc wall for two roller, two roller surface evenly distributed half circular arc groove or the diamond of the same shape groove, through a pair of gears meshing transmission, make two roller speed, reverse rotation, the cone spiral slit material to bite into the slot and the instant compulsory compression, material as the pressure decreases after compression under its elasticity and gravity, fall off from the slot, enter the crushing granulation system, Then according to the user's particle size requirements sieving, grading, in line with the quality requirements of uniform granular products, sieving powder to return to the vibrating hopper recycling.
Main Technical Parameter:
|Model||Diameter of graule(mm)||Production capacity(kg/h)||Power of motor(kw)||Overall dimensions(mm)||Weight(kg)|
The company is a professional manufacturer of dryer; After years of exploration and struggle, has formed a large scale domestic dryer production base. As the company to provide customers with advanced drying equipment technology, stable and reliable performance, reasonable price, is listed as a number of manufacturers dryer suppliers. Our company will live up to the expectations and love of customers, all staff will always adhere to the "attack technology, brand, by innovation, satisfaction" quality policy, to provide customers with more drying equipment, better after-sales service, and strive to become the best dryer suppliers.
The equipment produced by the company mainly includes: Flash dryer, fluidized bed dryer, spray dryer, belt drier, boiling granulating drier, efficient boiling drying machine, drying machine, double cone rotating vacuum dehydrated vegetables drying machine, square vacuum drying machine, hollow blade dryer, disc dryer, air drying, freeze drying machine, ball shot blasting machine, multi-function granulating machine, dry granulator, sludge treatment equipment, chicken production equipment, special pesticide WDG production line equipment, gas - oil - coal stove, all kinds of mixing equipment, crushing equipment, screening equipment, transportation equipment, packaging equipment,
The drying equipment produced by the company is widely used in chemical industry, coal, metallurgy, mining, port, electric power, building materials, light industry, grain, cement, fertilizer, industrial salt, food and other industries, especially in food; Pharmaceutical; Chemical industry; Metallurgy, coal industry welcomed by the masses of users trust and successful application in tea leaves, tea, chocolate, cosmetics, detergent, butyl glycol, feed, soluble sulfur compound fertilizer, chemical fertilizer, high temperature, carbon black, titanium dioxide, soda ash, sawdust, small wood, wood, coal, power plant desulfurization dust, dust the blues, sludge, winding waste, fly ash, cement, sand, grain and other materials.
Without any additives, dry powder directly granulating.Particle strength can be adjusted by adjusting the pressure of the roller to control the strength of the finished product.Cycle operation to achieve continuous production.High output of finished products, the output per machine can reach more than 2000kg/h (bulk density 1.5 103kg/m3).
