Product Details:

Place of Origin: ZHEJIANG
Brand Name: HUALIAN PAHRMD
Certification: CE
Model Number: FD-NFJ-150

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 2200- 2800/set
Packaging Details: carton /wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/month
Get Best Price Contact Now

Detail Information

Productivity: 7000pcs/min Vacuum Dust Clearing: 2.7m3/min -0.014MPa
Compress Air(Prepare By Yourself): 0.25m3/min 0.3MPa Power: 180W
Overall Dimensions: 900*600*1110mm(L*W*H) Material: Stainless Steel
Weight: 45kgs
High Light:

180w capsule polishing machine

,

7000pcs/min capsule polishing machine

,

180w capsule polisher

Product Description

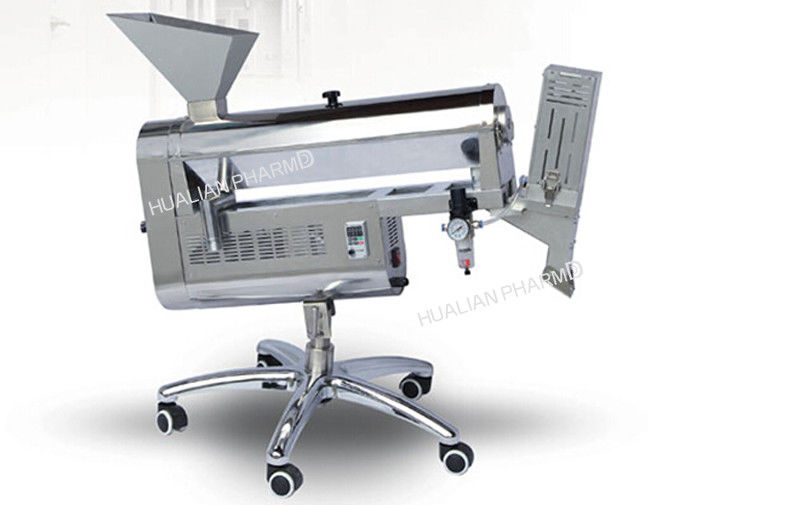

7000pcs/Min 180w Capsule Polishing Machine

NFJ-150 SERIES CAPSULE SORTING POLISHER

NFJ-150 is a kind of sorting function capsule polishing equipment, it is not only used for capsule polishing and elimination of static electricity, can also be automatically excluded volume slightly, shell, debris and the cap body separated capsule. Can be applied to all types of the capsule, without changing mould.

Capsule filling machine will capsule filling after delivery to the polishing machine chute entrance.

The capsules from entrance by rotating the brush will be brought to the screen barrel capsule. The brush in the screen barrel polishing and dust on the capsule surface, and the lack of cap and a solid cap separation and scattered material, material recovery through vacuum suction port.

Brush the capsule is sent to the screen barrel export.

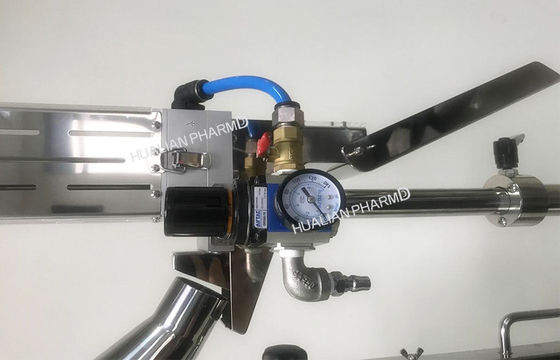

The sorting device, through the clean compressed air to the volume slightly, shell, debris and capsule cap separated collecting to reservoir

The pressure of compressed air, displayed on the pressure gauge filtration pressure reducing valve, and adjusted according to different needs.

The qualified capsules by export outlet.

Main Features:
1) The height and angle can be adjusted to fit into any chute of the capsule filling machines and tablet presses so the products can be polished immediately after production.
2) It can eliminate static; and automatically reject ultra light weight capsules, fragment and empty capsules.
3) New type net cylinder ensures no jammed capsules during operations
4) The capsules are not directly contact with the metal net to protect the printed capsule effectively.
5) New type of brush is durable and can be change easily.
6) Excellent design for quick cleaning and straight forward maintenance.
7) Adopts frequency converter, which is great for continuous long hours of operations.
8) Drive by synchronous belt to reduce noise and vibration of the machine. It is suitable for all sizes of capsules without any change parts.
9) All the main parts are made of premium stainless steel are in compliance with pharmaceutical GMP requirements.

technical parameter :

Power supply 220V 50HZ/60HZ
Power 180W
Productivity 7000 pcs /min
Vacuum dust clearing 2.7m3/min -0.014MPa
Compress air(Prepare by yourself) 0.25m3/min 0.3MPa
Overall dimensions 900*600*1110mm(L*W*H)
Weight 45kg

pictures:

7000pcs/Min 180w Capsule Polishing Machine 0

7000pcs/Min 180w Capsule Polishing Machine 1

7000pcs/Min 180w Capsule Polishing Machine 2

7000pcs/Min 180w Capsule Polishing Machine 3
