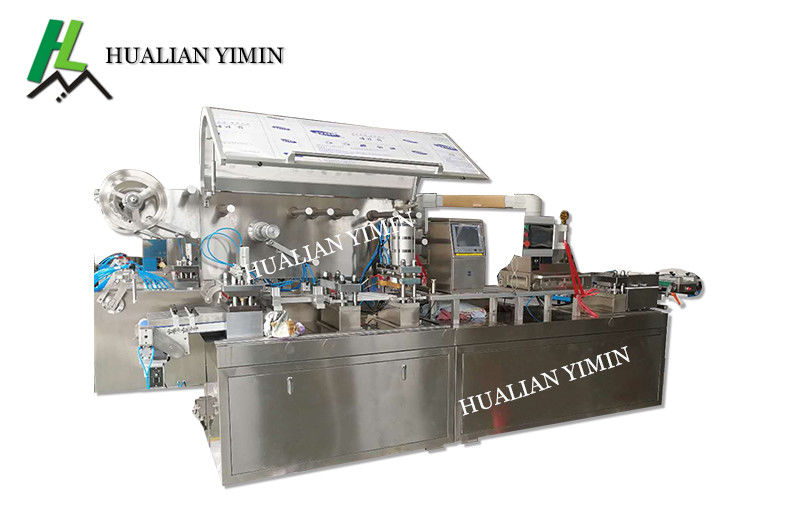

60L/H 6kw Hard Capsule Blister Packing Machine

60L/H 6kw Hard Capsule Blister Packing Machine

Product Details:

Place of Origin: CHINA
Certification: CE
Model Number: DPB-260HL

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 22000~30000/SET
Packaging Details: standard wooden case
Delivery Time: 35 WORING DAYS
Payment Terms: L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Blister Packing Machine Usage Field: Food ,pharmacutical,chemistry
Total Power: 6kw Blister Material: PVC Hard Tablet, PTP Tablet , Cold Forming The Aluminum Film 0.12-0.15×260mm Dialysis Paper 50-100g×260mm Average Hole Of Roll 70-76mm Packing Material Maximum Width 270mm
Mould Cooling: Tap Water Or Recycle Water 60L/H Overall Dimension: 4300×720×1600mm L×W×H
Automatic: Fully Automatic Original: China
High Light:

hard capsule blister packing machine


6kw capsule blister packing machine


60L/H capsule blister packing machine

Product Description

60L/H 6kw Hard Capsule Blister Packing Machine

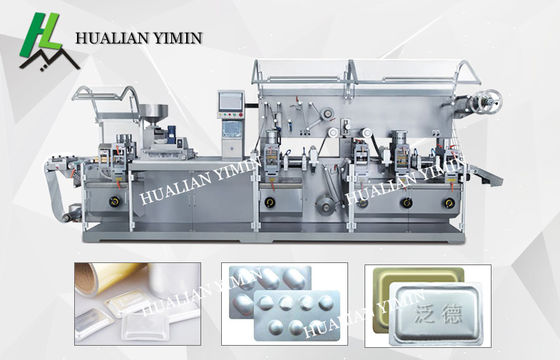

Hard Capsule Blister Packing Machine Mechanical Flat Plate Aluminum Plastic Type

1. brief

This machine is the new generation of blister packaging equipment, improved on the basis of traditional machine suitable for capsule, tablets, milk slice, candy, the products such as aluminium, aluminium, composite seal packing.

2. Technical characters

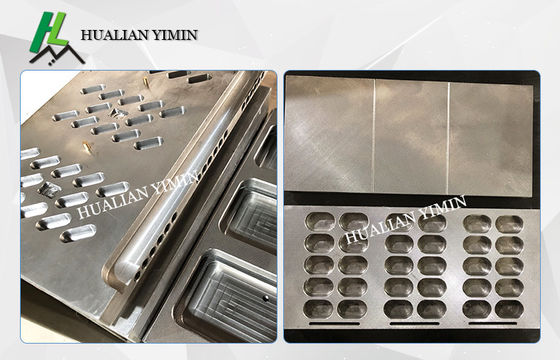

Mould exchange: as a traditional 250 type of improved, mould and old type completely general, is old customer renewal of very good choice.
Die an installation and adjustment: continue lathes type guide rail, use screw adjusting mode of poles, make cabinet protection design clever, can prenent drugs fall into the machine, it is mo re convenient to clean up.
Servo traction, set the more convenient, more easily to the cursor, PVC motor feeding, transmission more robust.
Can be divided structure, convenient transport elevator, gassing axis with PVC, aluminum foil, high-end better use.

3. Main Technical Parameter

Punch frequency 10-70times/min
Capacity 9600-12000 standard version 80*75
Max forming area depth 120*250*26mm
Stroke 20-120 max 160mm
Standard blister 80*57mm can be designed as users requirements
Main motor power 10 kw
Total power 380v/220v 50HZ/60HZ 8KW
Packing materials

PVC hard tablet 0.15-0.5×260mm

PTP tablet 0.02-0.035×260mm
Cold forming the aluminum film 0.12-0.15×260mm

Dialysis paper 50-100g×260mm
Average hole of roll 70-76mm Packing material maximum width 270mm

Air consumption ≥0.3m3/h customer 's own ( air compressor ) 0.6-0.8Mpa
Mould cooling Tap water or recycle water 60L/H 60L/H
Overall Dimension 4300×720×1600mm L×W×H
Weight 2000kg

4. Principle and Characteristics of Machine Operation

This machine is controlled by PLC man-machine circle. It consists of sensor, photoelectric, pneumatic, heating and mechanical components. The operation principle of the machine is that the forming material is preheated and entered into the forming device to form a bubble cap. The material is loaded into the bubble cap by the feeding device or the hand pendulum, then sealed by the thermal packaging device. Finally, the blanking device punches the publishing block to complete the bubble cap packaging. All actions in the whole process are automatically completed, and measures such as fault alarm, material shortage alarm or automatic shutdown are taken to ensure the safe operation of the machine. The main features of this model are as follows:

1. Closed isolation design is adopted in the operation area and the mechanical rotation area to completely isolate other items such as packages and lubricants so as to avoid cross-contamination.

2. As an improvement of the traditional flat-panel machine, the die and the old model are completely universal, which is a good choice for old customers to update.

3. The extension of lathe-type guide rail and the use of screw adjustment make the box protection design clever, which can prevent drugs from falling into the machine and make cleaning more convenient.

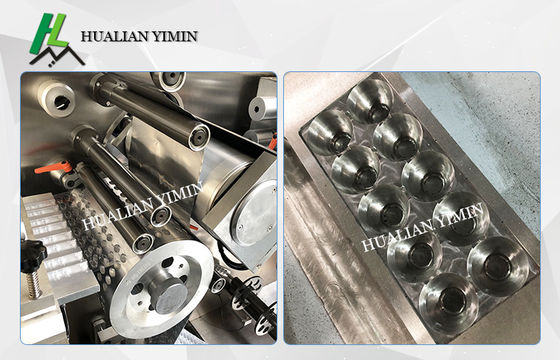

4. Molding, traction, heat sealing, batch number and other devices adopt side-push handle lock mode to change the mould, which ensures the quick change of the mould, and the installation time of the mould is only half of the traditional model.

5. Servo traction has become the standard configuration. It is more convenient to set the traction length and easier to mark when changing packaging varieties.

6. The traction clamping mode is improved to the roller type, which saves the air-clamp traction return time and greatly improves the efficiency of the whole machine.

7. The load-bearing shaft distributes the material motor, and the tension of the package material is more constant. The packing material is packed by electric expansion axle, and the replacement of the packing material is quick and convenient.

8. The whole machine can be divided into structure design, convenient for transportation and installation, and flexible for moving in narrow space.
