    Automatic Plastic Soft GMP Tube Filling Sealing Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: HUALIAN YIMIN
    Certification: OQ,IQ,DQ
    Model Number: GF-400L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SETS
    Price: USD 35000.00 /SET
    Packaging Details: standard wooden case
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 400 sets/month
    Get Best Price Contact Now

    Detail Information

    Modle: GF-400L Hose Material: Metal Tube, Aluminum Tube
    The Length Of The Hose: φ10-φ50(mm) The Filling Capacity: 60-250 (mm)
    Filling Accuracy: 3-300 - Ml/teams Work Pressure: ≤±1%
    Motor Power: 1800-4200/hours Overall Dimensions: 2620×1020×1980mm(L×W×H)
    The Host Weight: 1100kg
    High Light:

    GMP tube filling sealing machine

    ,

    60mm tube filler and sealer

    ,

    60mm tube filling sealing machine

    Product Description

    Automatic Plastic Soft GMP Tube Filling Sealing Machine

    GF-400L hose filling and sealing machine


    Product description:

    The product has the characteristics of reasonable structure, complete functions, convenient operation, accurate loading, stable operation and low noise.
    The PLC programmable controller is used to program the whole machine, from liquid to high viscosity fluid material (paste) for filling and sealing to code number (including production date) and other processes. It is an ideal equipment for filling and sealing aluminum tubes, plastic tubes and composite tubes in cosmetics, pharmaceuticals, food, adhesives and other industries, and meets GMP requirements.

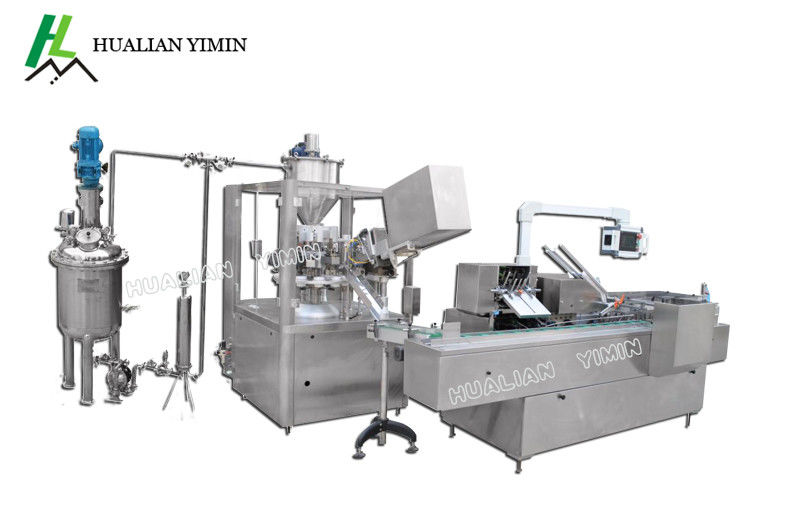

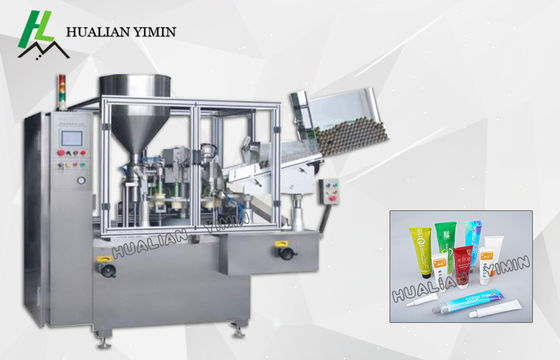

    Automatic Plastic Soft GMP Tube Filling Sealing Machine 0
    Automatic Plastic Soft GMP Tube Filling Sealing Machine 1
    Automatic Plastic Soft GMP Tube Filling Sealing Machine 2
    Product features:

    1, high grade liquid crystal display programming controller and button operation video, a comprehensive grasp of the equipment stepless speed regulation, parameter Settings, output count design, pressure indicator, fault display and other operating conditions, make the operation simple and user-friendly.

    2. This machine adopts 12-station structure design, which can automatically complete the whole process of tube supply, calibration, inert gas filling (optional), filling, tail sealing, coding and finished product export.

    3. The high-precision calibration system reduces the error range of the color standard of the pipe body.

    4. The adjustment position is external and the position scale is displayed by digital display, which makes the adjustment quick and accurate (suitable for production of multiple specifications and varieties).

    5. Machine, light, electricity and gas integration, realizing no tube and no filling, no supply tube in place, low pressure, automatic display (alarm); Open the protective door can automatically stop the machine and other automatic functions.

    6. The same machine can be equipped with different molds to fill and seal different specifications of metal pipes, plastic pipes and composite pipes.

    7. Water circulation insulation sandwich material barrel and automatic stirring system can be selected to make the material more even and more ideal.

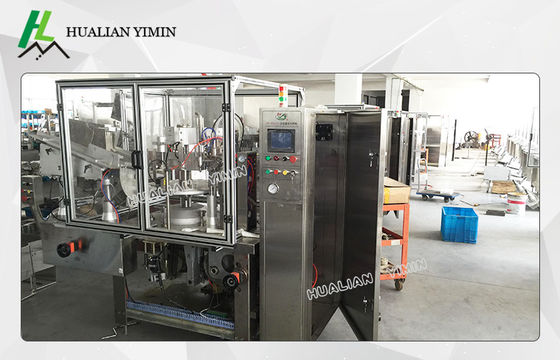

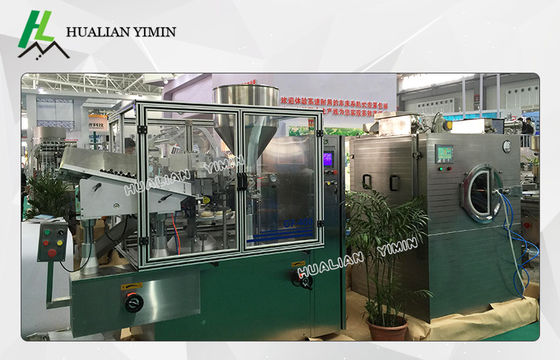

    Automatic Plastic Soft GMP Tube Filling Sealing Machine 3
    Automatic Plastic Soft GMP Tube Filling Sealing Machine 4
    Automatic Plastic Soft GMP Tube Filling Sealing Machine 5
    Automatic Plastic Soft GMP Tube Filling Sealing Machine 6
    Technical Parameters:


    L-type technical parameters
    Hose material Metal tube, aluminum tube
    Hose diameter φ10-φ50(mm)
    Hose length 60-250 (mm)
    Filling capacity 3-300ml / support
    Filling accuracy ≤±1%
    Production capacity 1800-4200 sticks/hour
    working pressure 0.4-0.6 Mpa
    Motor Power 2Kw(380V/220V 50HZ)
    Dimensions 2620×1020×1980mm(L×W×H)
    Host weight 1100kg

    Installation size diagram:
    Automatic Plastic Soft GMP Tube Filling Sealing Machine 7
    Equipment detail map:

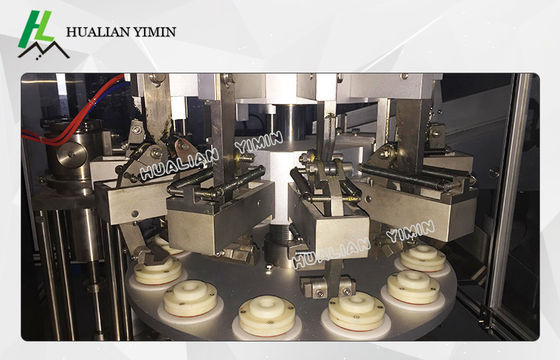

    Automatic Plastic Soft GMP Tube Filling Sealing Machine 8
    Automatic Plastic Soft GMP Tube Filling Sealing Machine 9
