Pharmaceutical Dry Powder Mini V-type Cone Mixer 12r/Min Automatic

Pharmaceutical Dry Powder Mini V-type Cone Mixer 12r/Min Automatic

Product Details:

Place of Origin: CHINA
Brand Name: HUALIAN PHARMD
Certification: ISO,GMP
Model Number: FD-VHJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: standard wooden case
Delivery Time: 50 DAYS
Payment Terms: L/C, T/T
Supply Ability: 80
Get Best Price Contact Now

Detail Information

Model Number: FD-VHJ Loading Capacity(L): 3000
Voltage: 220V/380V/440V Power (kW): 1.5
Rotate Speed(Rpm): 8-22 Weight (KG): 350
Name: V Cone Mixer Application: Pharmaceutical Industry, Chemical Industry, Foodstuff Industry And So On
High Light:

Mini V Cone Mixer

,

Pharmaceutical Dry Powder V Cone Mixer

,

12r/Min V Cone Mixer

Product Description

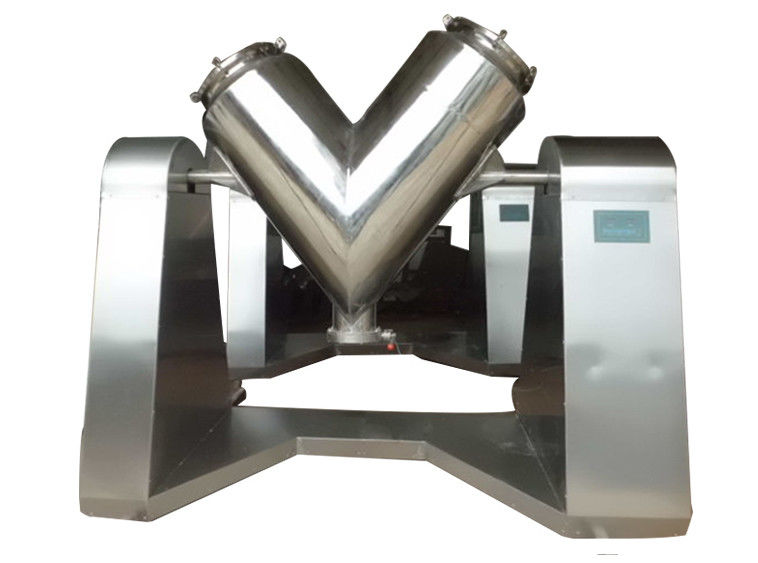

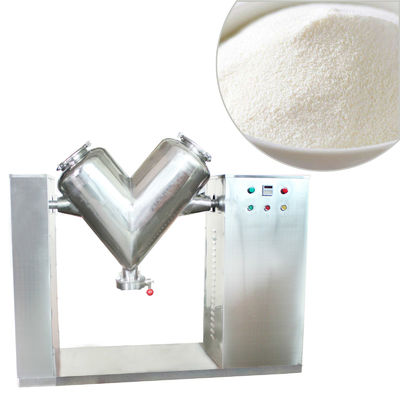

Pharmaceutical Dry Powder Mini V-type Cone Mixer 12r/Min Automatic

V Cone Mixer Pharmaceutical Mini Dry Powder Mixing Machine Equipment



Introduction:
The V type cone mixer adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle,the materials can mix evenly. The inside and outside of machine are polished.It is suitable for smaller powder, blocks and the material that contain a certain mixture of water. In addition, the machine is also equipped with a timing device; In that case, you can control the material mixing time.



Application​:
The V type mixer blender is widely used for blending more than two materials(powder or granule shape)in pharmaceutical industry, chemical industry, foodstuff industry and so on.It is suitable for mix powder, granule material with good liquidity, small property difference. Because of the material in the v-shaped mixed container can flow smoothly, it will not destroy the base material, so the v-shaped mixer applies to easy to broken, easy wear granular materials,fine powder,and block materials with certain moisture content.



V cone mixer blender applied fields
The V type mixer blender is widely used for blending more than two materials(powder or granule shape)in pharmaceutical industry, chemical industry, foodstuff industry and so on.It is suitable for mix powder, granule material with good liquidity, small property difference. Because of the material in the v-shaped mixed container can flow smoothly, it will not destroy the base material, so the v-shaped mixer applies to easy to broken, easy wear granular materials,fine powder,and block materials with certain moisture content.





Main Technical Parameter:



Model VHJ-0.18 VHJ-0.3 VHJ-0.5 VHJ-1.0 VHJ-1.5 VHJ-2.0 VHJ-2.5 VHJ-3.0 VHJ-4.0 VHJ-5.0 VHJ-6.0
Productive capacity(kg/time) 72 120 200 400 600 80 1000 1200 1600 2000 2400
Model of vacuum pump W2 W2 W2 W3 W3 W3 W3 W4 W4 W4 W4
Time of raw material fed in(min) 3-5 3-5 4-6 6-9 6-10 8-13 8-15 8-12 10-15 15-20 18-25
Mixing time(min) 4-8 6-10 6-10 6-10 6-10 6-10 6-10 8-12 8-12 8-12 8-12
Total volume(m3) 0.18 0.3 0.5 1.0 1.5 2.0 2.5 3.0 4.0 5.0 6.0
Stirring speed(r/min) 12 12 12 12 12 12 12 10 10 10 10
Motor power(kw) 1.1 1.1 2.2 4 4 5 7.5 7.5 11 15 18.5
Rotation height(mm) 1580 1760 2400 2840 3010 3240 3680 3700 4350 4800 5300
Weight (kg) 280 320 550 950 1020 1600 2040 2300 2800 3250 3850

Main Features:

1. Compact structure, operation simple and maintenance convenience.
2. Using stainless steel material, prevent the mixing materials from being polluted .
3. The machine adopts V type asymmetric mixing vat to compound , no dead angle, no accumulation of materials, high speed, short mixing time and high uniform mixing.
4. Running steady and lower noise
5. Equipped with a timing device, it can set mixing time to realize automatic stop .

FAQ

Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Zhangjiagang Jiangsu province. We are warmly welcome you visit our Factory if you have a travel plan.

Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.

Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.

Q: How about the after service and guarantee period?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.

Q: How do we contact you?
A: Please leave a message and click "send" to send us an inquiry.
