Product Details:

Place of Origin: CHINA
Brand Name: HUALIAN PHARMD
Certification: ISO,GMP
Model Number: FD-SYH

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: standard wooden case
Delivery Time: 50 DAYS
Payment Terms: L/C, T/T
Supply Ability: 80
Get Best Price Contact Now

Detail Information

Model Number: FD-SYH Power(W): 0.37-11kw,
VoltageVoltage: 220v-480v Loading Capacity(L): 1200
Product Type: Medicine , Chemical , Food Product Name: Pharmaceutical Mixing Equipment
Mixing Precision: >99.9% Material: Stainless Steel
Speed: 2-8rpm
High Light:

Cone Mixing Equipment In Pharmaceutical Industry

,

99.9% Mixing Equipment In Pharmaceutical Industry

,

Double Spiral Conical Pharmaceutical Mixing Equipment

Product Description

Double Spiral Conical 99.9% Mixing Equipment In Pharmaceutical Industry/mixer

Model 3D Motion Mixer / Blender / Mixing Machine / FD-SYH Powder Mixer Machine




Product Description:


Double spiral conical mixer is widely used in the mixing of powders and powders (solid-solid) of chemical, ceramic powder, pesticide, dye, food, color, glaze, feed, building materials and rare earth. Such chemical machinery has wide adaptability to the mixture material, does not cause overheating on the heat sensitive material, does not pressurize and grind the granular material, and does not cause chip separation phenomenon when the material with different specific gravity and particle size is mixed.





Principle:



When it works, the mixer is provided with three-dimensional movement, and carries out revolution and rotation. The mixer has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.

This machine is suitable for many industries such as pharmaceutical industry,chemical industry, metallurgy industry, foodstuff industry, architecture industryand institutes, It can mix powder and granule raw materials having good fluidityand make the mixed raw materials reach the best mixing state.
This machine is suitable for many industries such as pharmaceutical industry,chemical industry, metallurgy industry, foodstuff industry, architecture industryand institutes, It can mix powder and granule raw materials having good fluidityand make the mixed raw materials reach the best mixing state.



Technical characters:


1. Because the mixing drum has multi directional motion, it makes raw materialinside the drum has many cross-mixing points, therefore the mixing effect is good.Its degree of uniformity may be over 99.9%. Its Max loading efficiency may be 0.9(The loading efficiency of ordinary mixer is 0.4~ 0.6). Its mixing time is short andits efficiency is high.

2. The design of mixing drum is unique. Its inner wall is polished finely. Itsadvantages are no dead corner, no pollution to raw material, convenient indischarge, easy in clean and so on.






Main Technical Parameter:



Type SYH-5 SYH-100 SYH-200 SYH-400 SYH-600 SYH-800 SYH-1000 SYH-1500
    100 200 400 600 800 1000 1500
Max loading volume (L) 4 60 120 240 360 480 600 900
Max loading weight (kg) 5 40 80 160 240 320 400 600
Spindle rotatio n speed (r/min) 24 15 12 10 10 10 10 10
Motor power (kw) 0.37 1.5 3 4 5.5 7.5 11 15
Overall dimensions (mm) L 600 1200 1300 1500 1800 1900 1950 2600
W 1000 1800 1600 2200 2400 2500 2500 2500
H 1000 1500 1500 1500 1650 2100 2350 2400
Weight (kg) 150 500 750 1200 1500 1650 1800 2500





Structure:

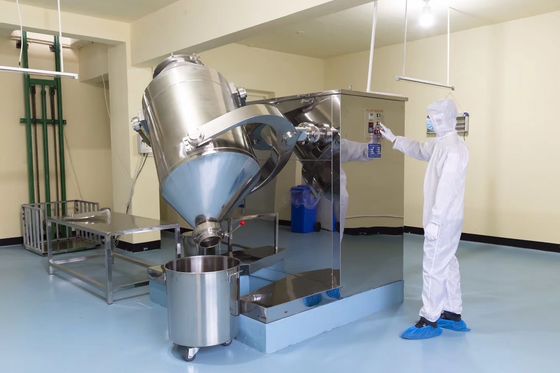

The three-dimensional motion mixer is composed of the machine base, transmission system, electrical control system, multi-direction motion I mechanism, mixing barrel and other parts. The mixing barrel in direct contact with the material is made of stainless steel.The inside and outside walls of the barrel are polished.



Shipping details

Double Spiral Conical 99.9% Mixing Equipment In Pharmaceutical Industry/mixer 0



The floor plan​

Double Spiral Conical 99.9% Mixing Equipment In Pharmaceutical Industry/mixer 1



Double Spiral Conical 99.9% Mixing Equipment In Pharmaceutical Industry/mixer 2
