Fruit Vegetable Hot Air Circulation Drying Oven Stainless Steel 304 316L

China Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L supplier
Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L supplier Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L supplier Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L supplier Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L supplier Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L supplier Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L supplier

Large Image :  Fruit Vegetable Hot Air Circulation Drying Oven Stainless Steel 304 316L

Product Details:

Place of Origin: CHINA
Brand Name: HUALIAN PHARMD
Certification: ISO,GMP
Model Number: FD-CT-C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: standard wooden case
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month fruit drying oven
Contact Now
Detailed Product Description
Model Number: FD-CT-C Voltage:: 220V - 450V
Power(Kw): 15kw Dimension(L*W*H): 1380x1200x2000MM
Weight: 820KGS Product Name: CT-C Series Hot Air Industrial Circulating Drying Oven
Material: Stainless Steel 304 And 316L Stainless Steel 304 And 316L Drying Capacity: 60-480 Kg/batch
Steam Consumption: 15-80 Kg/h Electrical Heater Power: 6-60 Kw
Fan Power: 0.4-2.2 Kw Drying Plate: 24-192 Pcs
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

industrial vacuum dryer

,

fluidized bed granulator

CT-C Series Hot Air Industrial Circulating Drying Oven



Product introduction:

Ct-c series hot air circulating oven is equipped with low-noise high-temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which improves the thermal efficiency of the oven from 3-7% in the traditional oven to 35-45% at present, and the high thermal efficiency can reach 50%. The successful design o ct-c type hot air circulating oven makes the hot air circulating oven in China reach the advanced level at home and abroad. Save a lot of energy for our country, improved the economic benefit of the enterprise. In 1990, the state administration of medicine issued the industry standard, unified model RXH.

Application​:

It is suitable for heating and curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic producls, light industry, heavy industry and other industries. Such as raw material medicine, crude medicine, Chinese medicine decoction pieces, extract, powder, granule, granule, water pellet, packaging bottle, pigment dye, dehydrated vegetable, melon and fruit is dry, sausage, plastic resin, electrical components, baking paint and so on.

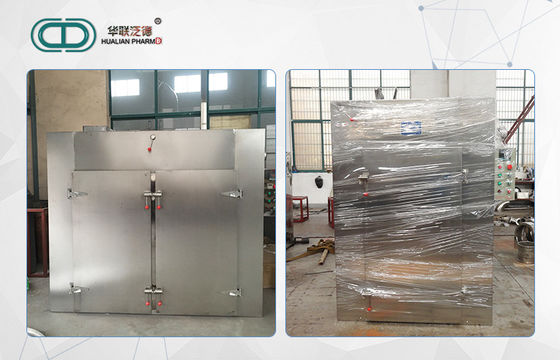

Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L

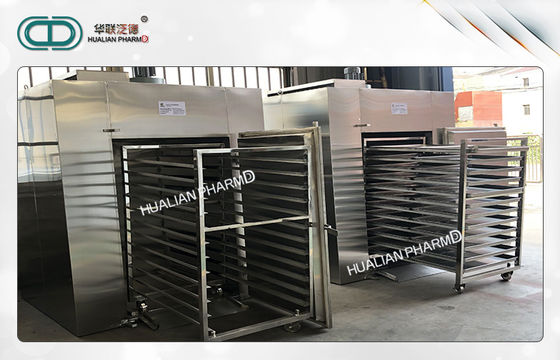

Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L

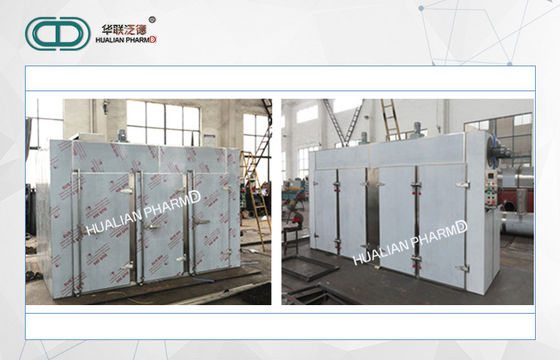

Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L

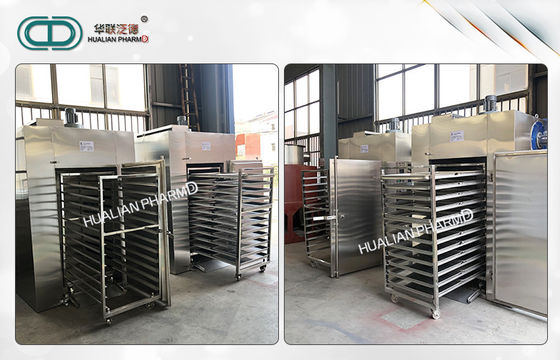

Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L

Technical characters:

1. Heating source steam, electricity. Far infrared, gas and electricity dual-use, for users to choose.
2. Service temperature: steam heating 50-130c, Max. 140
3. CSteam pressure 0.2-0.8mpa(2-8kg /cm2)
4. With electric heating calculated according to type 1 15kw, practical 5-8kw /h.
5. Use temperature is greater than 140C or less than 60C, should be noted when ordering.
6. Factory factory baked cars, baked disk size is uniform, can be exchanged.

Main Technical Parameter

Model Field Standard Model Technical data
Evaporation Efficientvolume Drying Steam Radiator Electric Fan Fan Oveall
area area capacity(kg/lot) consumption area heating volume(m³/h) power(kw) dimensions
(㎡) (㎡)   (kg/h) (m³) power(kw)     W xDxH
              (mm)
CTC-O RXH5-C 6 1.0 40 8 8 6 3450 0.45 1380x1200x2000
CT-C-I RXH-14-C 14.1 2.6 120 18 20 15 3450 0.45 2260x1200x2000
CTC-IA RXH-7-C 7.1 1.3 60 10 10 9 3450 0.45 1380x1200x2000
CTC-Il RXH-27-C 28.3 4.9 240 36 40 30 6900 0.45x2 2260x2200x2000
CT-C-IIA RXH-27A-C 28.3 4.9 240 36 40 30 6900 0.45x2 4280x1200x2270
CTC-II RXH-41-C 42.4 7.4 360 60 80 45 10350 0.45x3 2260x3200x2000
CT-C-IIIA RXH-41A-C 42.4 7.4 360 60 80 45 10350 0.45x3 3240x2200x2000
CT-C-IV RXH-54-C 56.5 10.3 480 80 100 60 13800 0.45x4 4280x2200x2270
CT-I RXH-14-B 14.1 2.6 120 20 23 15 3450 1.1 2480x1200x2375
CT-II RXH-27-B 28.3 4.9 240 40 48 30 5230 1.5 2480x2200x2438
CT-III RXH-41-B 42.4 7.4 360 60 72 45 9800 2.2 3430x2200x2620
CT-IV RXH-54-B 56.5 10.3 480 80 96 60 11800 3 4460x2200x2620



Number Model Field standard
model Equipped Drying pallet Temperature Total
  drying cart tobeequipped automatic weight(kg)
  (set) (рс) controlbox
1 CTC-O RXH5-C 1 16 Availabie 820
2 CT-C-I RXH-14-C 2 48 Availabie 1580
3 CTC-IA RXH-7-C 2 24 Availabie 820
4 CTC-Il RXH-27-C 4 96 Availabie 1800
5 CT-C-IIA RXH-27A-C 4 96 Availabie 1880
6 CTC-II RXH-41-C 6 144 Availabie 2100
7 CT-C-IIIA RXH-41A-C 6 144 Availabie 2210
8 CT-C-IV RXH-54-C 8 192 Availabie 2800
9 CT-I RXH-14-B 2 48 Availabie 1220
10 CT-II RXH-27-B 4 96 Availabie 1530
11 CT-III RXH-41-B 6 144 Availabie 2110
12 CT-IV RXH-54-B 8 192 Availabie 2300

Main technical parameters and related description:

1. A heating source of steam, far - infrared, electric steam dual-use, for users to choose.

2. Using temperature: steam heating 50-140 ° C, up to 150 C.

3. Electricity, far infrared temperature 50-500° C.

4. Equipped with automatic control system and computer control system for users to choose.

5. Common steam pressure: 0.02-0.8mpa (0.2-8kg/cm).

6. Electric heating, 15KW according to |, practical 5-8kw/h.

7. Special requirements shall be stated when ordering.

8. Non - standard oven price negotiable.

9. Please note when ordering if the operating temperature is greater than 140C or less than 60C.

10. Factory factory bake car, bake plate size is uniform, can be exchanged.

11. Baking tray size: 460x 640x45mm.

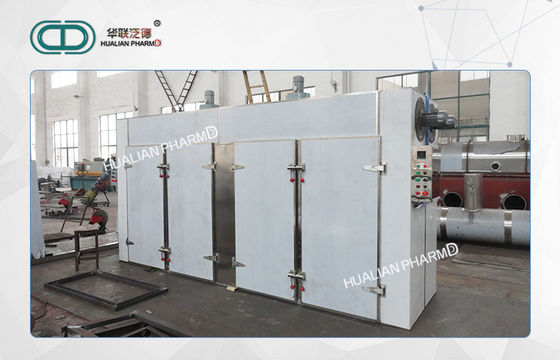

Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L

Schematic of installation​

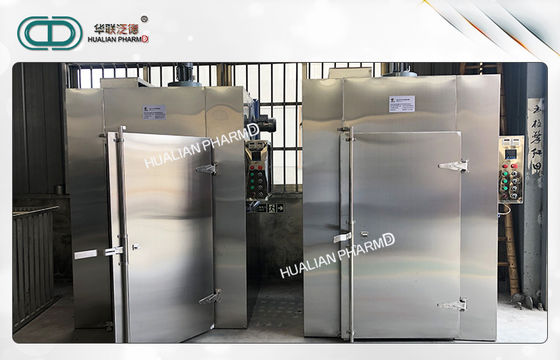

Fruit Vegetable  Hot Air Circulation Drying Oven Stainless Steel 304 316L
