    20kHz 15khz 3.2kw Ultrasonic Plastic Welder

    Product Details:

    Place of Origin: china
    Brand Name: HUALIANYIMIN
    Certification: CE
    Model Number: SAO2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: International standard export wooden case packing
    Delivery Time: 20-25days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100sets/month
    Get Best Price Contact Now

    Detail Information

    Worktable: 2 Kinds Type: 15KHz / 20kHz Digital Type
    Condition: New Voltage: 220V
    Key Selling Points: Long Service Life Machine Type: Ultrasonic Welding Machine
    Function: Plastic Welding
    High Light:

    3.2kw ultrasonic plastic welder


    15khz ultrasonic plastic welder


    20kHz ultrasonic plastic welder

    Product Description

    20kHz 15khz 3.2kw Ultrasonic Plastic Welder

    15K 3200W ultrasound plastic toys welding machine for Plastic Welding Trade Assurance
    15KHz / 20kHz digital type 15KHz / 20kHz digital type
    Worktable: 2 kinds
    An iron
    A kind of aluminum profile (brown).(The price is the same. Customer's choice)
    Machine Feature:
    Ultrasonic welder has strong welding strength to weld different plastic parts and meet waterproof and airtight requirement. It can weld many kinds of plastic materials such as: ABS, PS, PP, PE, PC, PVC, NYLON, NORYL, ACETAL, POLYSULFON etc.
    1. High precision splitter installed, with Powerful ultrasonic welding, wonderful welding effect assured.
    2. High Q value oscillator installed, high quality, reliable working status. Use different moulds; you can realize different welding application.
    3. Automatic overload protection system.
    4. Adjustable horizontal level, easy control welding horn.
    5. Have resonant frequency when the load, unload, without adjustment for the frequency of welding horn.
    6. high-power machine, which is applied for Large workpiece.
    7. Adopting alloy steel to keep frequency strong and stable.
    8. All design and parameter above are adjustable upon customer special requirement .
    Equipment photos:

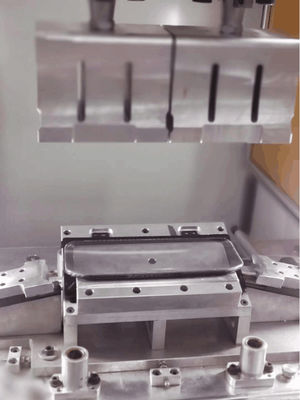

    20kHz 15khz 3.2kw Ultrasonic Plastic Welder 0

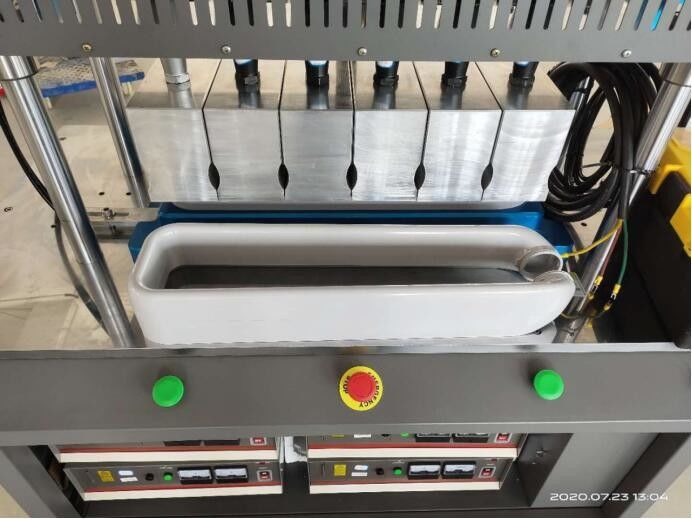

    20kHz 15khz 3.2kw Ultrasonic Plastic Welder 1

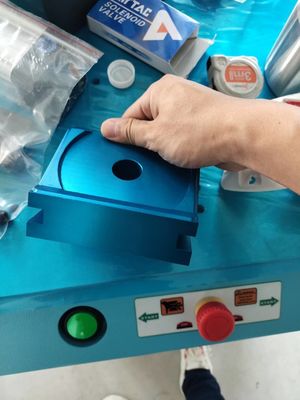

    20kHz 15khz 3.2kw Ultrasonic Plastic Welder 2

    Technique Specification:

    Type SAO2000
    Frequency 20kHz/15kHZ
    Power 2600W
    Input voltage AC220V
    Horn journey 75mm
    Machine journey 275-455mm
    Oscillation time 0.01-9.995
    Air pressure 1-7 bar
    Welding capability Φ220mm

    Operation Switch

    Two-hand start and EMERGENCY BREAK button at front, external switches are optional.



    Press 760x650x2225
    Generator (Digital) 412x320x118
    Generator (Standard type) 557x414x152


    Press 180kg
    Generator (Digital) 34kg
    Generator (Standard type)





    Digital: Time mode/ Energy mode / Vibration drop function

    Standand: Time mode

    Equipment details:

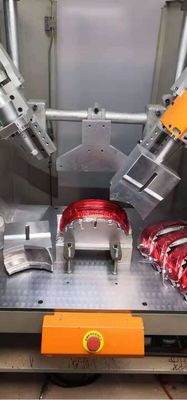

    20kHz 15khz 3.2kw Ultrasonic Plastic Welder 3
    Equipment advantages:
    1,Two Height Adjustment Holder
    Machine adopts with high precision independence rotary valve cylinder, make the filling volume accuracy higher.
    2,Strong Welding Height Adjuster
    The machine can adjust the height to weld the products of different height.
    3,Strong Power Booster
    Machine has many power model:
    15K 1800W, 15K 2200W, 15K 2600W
    20K 1500W, 20K 1800W, 20K 2000W
    Different welding size work with different power and Khz.
    4, 1-4 Power Level Adjuster
    Machine has 1-4 Power Level to adjust, according to your work-piece welding size and welding strength to adjust a suitable welding power.
    5,Safety Device - Emergency Stop
    Once we meet any emergency situation, we can press this red button and machine stop Immediately.
    6,Safety Working Way - Two Start Buttons
    There are two Start Buttons, worker need to press these two buttons in same time to start to weld the work-piece, the possibility of clamping is prevented.
