    GMP Food Chemical Pharmaceutical Mixing Equipment Two Dimensional

    Product Details:

    Place of Origin: CHINA
    Brand Name: HUALIAN PHARMD
    Certification: ISO,GMP
    Model Number: FD-EYH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: standard wooden case
    Delivery Time: 50 DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 100 Set/Sets per Month
    Get Best Price Contact Now

    Detail Information

    Model Number: FD-EYH Loading Capacity: 900L
    Power(W): 4.4kw Voltage: 380V
    Machine Name: Two-dimensional Mixer Product Name: Two-dimensional Motion Mixer
    Mixer Type: Planetary Mixer Material: Stainless Steel 304 / SUS316L
    Product Type: Chemical Model: EYH Series
    Capacity: 50-2500kg/batch
    High Light:

    900L Food Chemical Pharmaceutical Mixing Equipment

    ,

    GMP Two Dimensional Pharmaceutical Mixing Equipment

    Product Description

    GMP Food Chemical Pharmaceutical Mixing Equipment Two Dimensional

    Industrial Two Dimensional Motion Mixer Machine For Food Chemical



    Main features

    1. For mixing dry powders or small granules in Food,Chemical and Pharmaceutical industry ;
    2. Particularly good at mixing materials with different bulk density and particle size range
    3. Mixing vessel volume: 300-5000L;
    4. GMP design
    5. Vacuum conveyor can be equipped for automatic and dust-free feeding

    Working principle

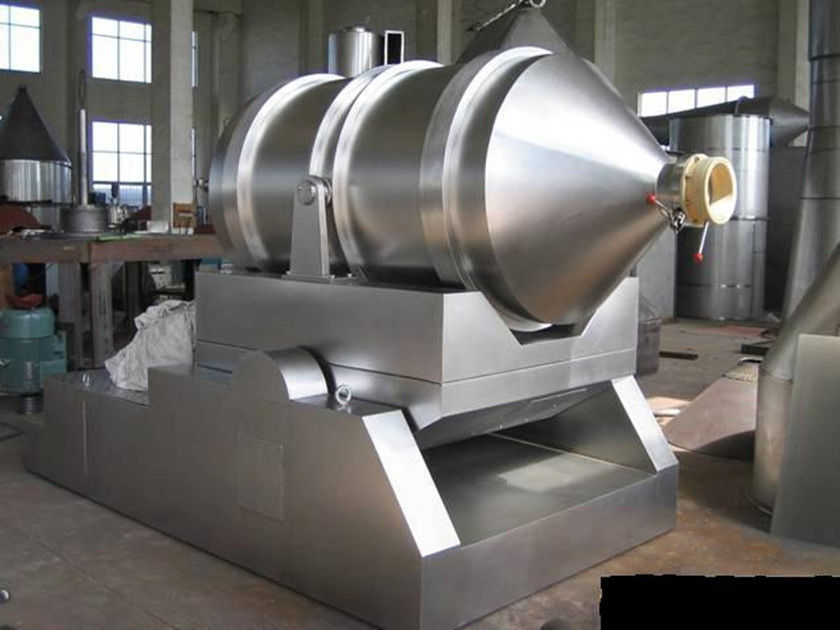

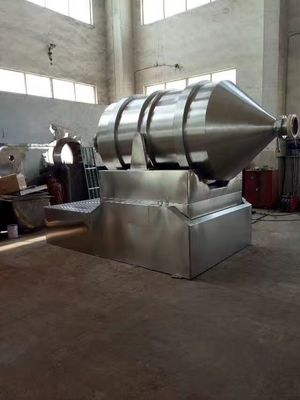

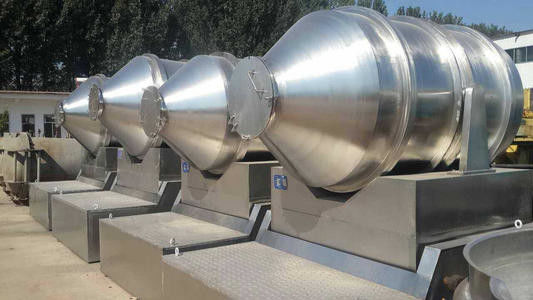

    EYH series 2D rotary drum batch mixer machine is a novel material mixer extensively used in phamaceutical, chemical, metallurgical, food, light and agricultical industries. This mixer can carry out highly even mixing of powders or granules, so that the mixed materials can reach their best effectiveness. This 2D rotary drum batch mixer machine consists of mixing barrel, swing frame and support frame. The Double cone mixing barrel is mounted on support frame by four rollers which makes the mixing barrel rotate axially. Meanwhile, the crank arm pushes and pulls the mixing barrel back and forth. Axial rotation and rock back and forth happens in a solid two dimensional space. Materials are evenly mixed during rolling and rocking in a very short time.
    GMP Food Chemical Pharmaceutical Mixing Equipment Two Dimensional 0Technical advantages

    Technical advantages



    1. Mirror polished of inner and outer shell to meet GMP standard.
    2. No blind angle in the double-cone shell, no accumulation of materials, efficient and shor mixing time.
    3. Mixing uniformity can reach 99%
    4. Spiral paddles are welded inside the mixing chamber to enhance mixing
    5. Fully integrated motors and controls
    6. Can work with vacuum conveyor for automatic and dust-free feeding
    7. Mixing chamber volume can be as big as 15000L due to horizontal design for large-scale production.


    Main Technical Parameter:
    Specgross volume
    (L)
    feed ratefeed weight
    (Kg)
          Overall dimensions(mm)                               Epower(kw)
    ABCDMHrotationsway
    EYH100
    1005040860900200400100015001.10.75
    EYH3003001507510001100200580140016501.10.75
    EYH60060030015013001250240720180018501.51.1
    EYH80080040020014001350240810197021001.51.1
    EYH1000100050035015001390240850204021802.21.5
    EYH15001500750550180015502409802340228031.5
    EYH2000200010007502000167024011002540244032.2
    EYH2500250012509502200185024011602760260042.2
    EYH30003000150011002400191028012202960264054
    EYH5000500025001800270022903001440353030007.55.5
    EYH100001000050003000320027003601800424040001511
    EYH120001200060004000340028003601910486042001511
    EYH1500015000750050003500300036021005000440018.515

    Main Features:
    1. Feed inlet cover is equipped with vacuum feeding interface, can be quickly connected with vacuum feeding , realizing automatic feeding, to reduce labor intensity, increases efficiency and also achieving dust - free operation, do not pollute the workshop environment, in line with GMP standard
    2. Mixing barrel is equipped with the material discharging board so that the machine has large charging coefficient ,fast and uniform mixing,convenient discharging...
    3. The discharging device adopts vacuum butterfly valve,with easy operation, the discharge volume can be controlled, no dust.
    4. The main body of machine is made of high-quality stainless steel ,with precision polished, easy to clean smooth surface , in line with GMP requirements.


    GMP Food Chemical Pharmaceutical Mixing Equipment Two Dimensional 1GMP Food Chemical Pharmaceutical Mixing Equipment Two Dimensional 2GMP Food Chemical Pharmaceutical Mixing Equipment Two Dimensional 3
