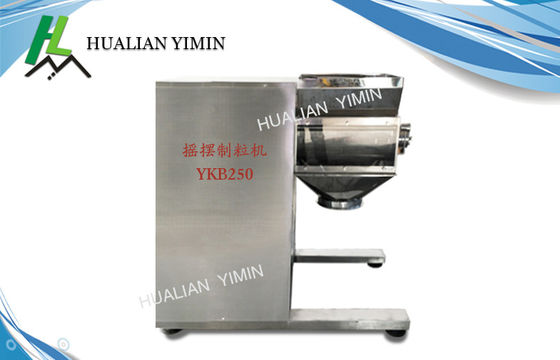

Pharmaceutical Oscillating Granulator 100 To 300kgs Capacity Fd-Yk-60,FD- YK-250 for POWDER

Pharmaceutical Oscillating Granulator 100 To 300kgs Capacity Fd-Yk-60,FD- YK-250 for POWDER

Product Details:

Place of Origin: CHINA
Brand Name: HUALIAN PHARMD
Certification: ISO,GMP
Model Number: FD-YK-60

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: usd 45000-50000/set
Packaging Details: standard wooden case
Delivery Time: 20 days
Supply Ability: 60 sets/ month
Get Best Price Contact Now

Detail Information

Material: Solid Material Field Range: Chemical ,food,pharmaceutical
Capacity: 100-300kgs Power: 5.5kw
Granulator dia: 0.8-5mm Drum speed: 38r/min
High Light:

high speed mixing granulator

,

vibrating fluid bed dryer

Product Description

Pharmaceutical Oscillating Granulator 100 To 300kgs Capacity Fd-Yk-60,FD- YK-250 for POWDER

YK-60single stirrer oscillating granulator double cylinder pharma

food powder block granulator lab pill granulator



Application & Features:

The machine can be widely used for pharmaceutical, foodstuff, chemical, solid drink and related industries, such as making capsule powder, chinese herbal granule and instant granules. The place of device contacting with raw material is made of stainless steel fully, it’s featured as beautiful appearance and easy to clean and simple operation and low energy consumption.

Working Principle:

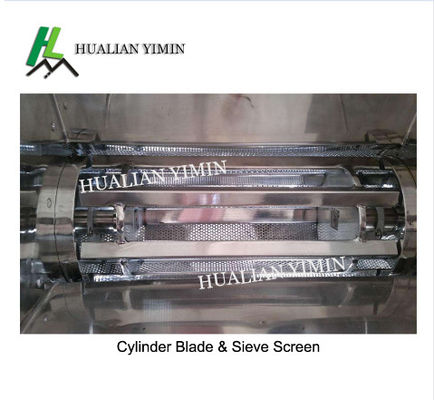

YK Swing Granulator is the special equipment which make wet powder pass through sieve screen and squeeze it into particles, under the reaction of clockwise and counterclockwise rotating of cylinder. In addition, it can squeeze the agglomeration powder into particles in required size.

Model YK-60 YK-100 YK-160 YK-250
Capacity (kg/h) 20-30 30-200 60-300 100-800
Motor power (kw) 0.25 1.1 2.2 5.5
Cylinder speed (r/min) 46 55 65 55
Swing angle 360° 360° 360° 360°
Cylinder diameter (mm) 60 100 160 250
Dimension (mm) 450*450*450 700*400*1050 1000*800*1300 1270*1000*1400
Weight (kg) 70 180 280 800
