PET PVC Shrink Label Slitting And Rewinding Machine In Packing Beverage Food
Product Details:
| Place of Origin: | ZHEJIANG |
| Brand Name: | HUALIAN EYSET |
| Certification: | CE |
| Model Number: | YS-ZHA 300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 22000- 29000/SET |
| Packaging Details: | standard wooden case |
| Delivery Time: | 35 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200sets/month |
|
Detail Information |
|||
| Model: | YS-ZHA 300 | Width Of Unwinding: | 620mm |
|---|---|---|---|
| Diameter Of Unwinding: | Ø600mm | Diameter Of Rewinding: | Ø700mm |
| Min. Sealing Size (mold-less): | 80mm | Min. Sealing Size (plates): | 30mm |
| Max Working Speed: | 400m/min | Dimension: | 2500x1300x1600mm |
| High Light: | paper roll slitter rewinder,screw air compressor |
||
Product Description

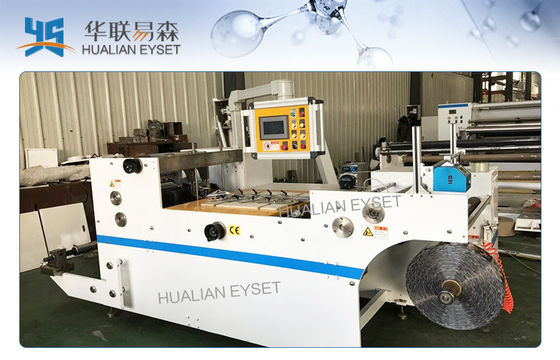

PET PVC Shrink Label Slitting And Rewinding Machine In Packing Beverage Food
PET PVC Shrink Label Slitting And Rewinding Machine In Packing Beverage Food
1. Application:

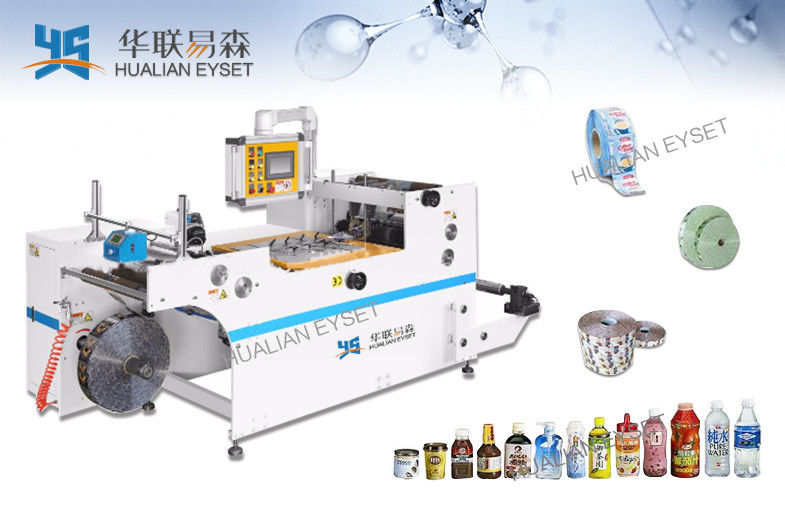

The machine is specialized in folding and gluing PVC ,PET ,PETG,OPS shrinkage film to shrink sleeve label roll . The label is widely used in packing beverage, food , batteries, cap , chemical industry, cosmetics, etc. The machine works more stably and efficiently because of excellent tension control system ,intelligent gluing system and reasonable design of mechanical structure . It is necessary equipment in shrink sleeve label production.
2. Main Technical Parameter:
| Model | 300mm |
| Width of Unwinding | 620mm |
| Diameter of Unwinding | Ø600mm |
| Diameter of Rewinding | Ø700mm |
| Min. Sealing size (mold-less) | 80mm |
| Min. sealing size (plates) | 30mm |
| Max. Sealing size | 300mm |
| Max Working Speed | 400m/min |
| Voltage of Whole Machine | 220V,1phase, 60hz |
| Dimension of Whole Machine | 2500x1300x1600mm |
3. Features:
1)Stable and heavy-duty frame for high speed operation of 400n/min.
2) Adjustable forming plate creates efficient operation.
3) Auto solvent feeding control.
4) Auto tension control for unwind/rewind unit to maintain the optimun tension.
5) Good brand EPC device, precision 0.1mm.
6) Accurate product width.
7) Cantilevered rewind/unwind shaft for fast roll changeover.

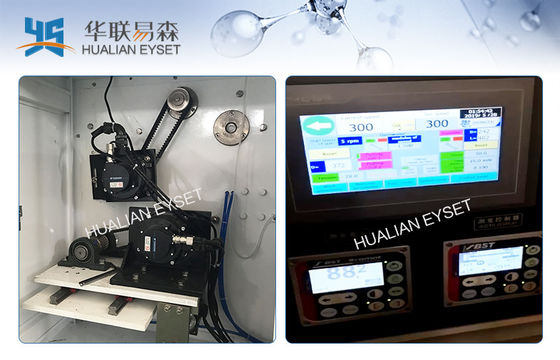

8) PLC with color touch screen control system.

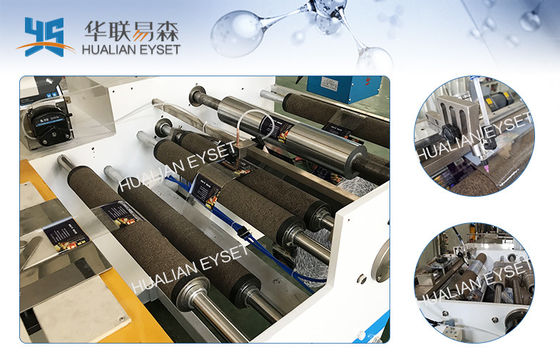

9) Copper tubing with felted wool for gluing, work with glue pump (dispenser) and PLC. The PLC can control the glue capacity with speed changes.
10) Rewind oscillation control to produce high quality rolls.
11) Static eliminator is adopted before rewinder.
12) Whole machine with 4 pcs of servo motors(2 for traction, 1 for rewinder, 1 for oscillation), and 1pc magnetic powder brake for unwinder.
13) Linear perforation.

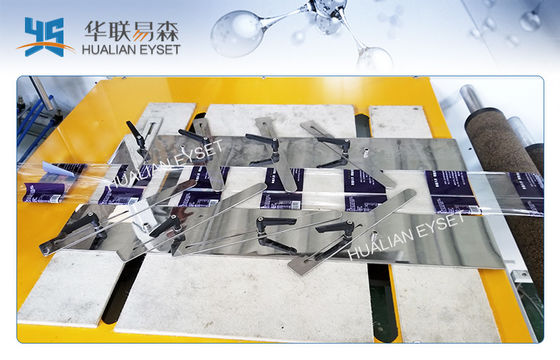

14) traditional aluminum plates forming device for sizes from 30-80mm.
15) auto stop when the rolls finish.
4. Optional devices:
- 6inch air shaft for rewinder
- Nordson Needle gluing system
- Sleeve Width checking system, BST brand(Max checking width 284mm)
5. Main configuration:
| PLC | MITSUBISHI JAPAN |
| Touch screen | MCGS CHINA |
| Main servo motor | YASKAWA JAPAN |
| Main servo motor drive | YASKAWA JAPAN |
| Unwind servo motor | YASKAWA JAPAN |
| Unwind servo motor drive | YASKAWA JAPAN |
| Rewind servo motor | YASKAWA JAPAN |
| Rewind servo motor drive | YASKAWA JAPAN |
| EPC controller | PAUSOURCE TAIWAN |
| EPC drive | PAUSOURCE TAIWAN |
| EPC ultrasonic sensor | PAUSOURCE TAIWAN |
| Glue pump | CHUANRUI CHINA |
| Unwind magnetic brake | WEIZHENG TAIWAN |
| Rewinding vibrating servo motor | YASKAWA JAPAN |
| Rewinding vibrating servo motor drive | YASKAWA JAPAN |
| Main bearing | NSK JAPAN |
| Guide rail | TBI TAIWAN |
| Low-voltage apparatus | SCHNEIDER FRANCE |
| Button and switch | SCHNEIDER FRANCE |
| Anti-static bar for rewinder | A&P China |
| Air shaft for unwinder | 76mm, China brand |
| Air shaft for rewinder | 76mm, China brand |
| LED Light for checking | China brand |
| Liner perforation online | Zhongtai Made |
