White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
Product Details:
Place of Origin: | HEBEI |
Brand Name: | HUALIAN EYSET |
Certification: | CE |
Model Number: | 1400MM |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 12000-16000.00/SET |
Packaging Details: | STANDARD WOODEN CASE |
Delivery Time: | 30 DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 SETS/MONTH |
Detail Information |
|||
Mother Tube Length: | 1400mm | Cutting Tube Length: | 0.5-1400mm |
---|---|---|---|
Wall Thickness: | 1—15mm | Inner Diameter: | Φ76 |
Cutting Way: | Pneumatic Cutting | Control Mode: | PLC |
Tube Feeding Way: | Manually | Ain Motor Power: | 3.0KW |
Dimension: | 2400x1200x800mm | Weight: | 800 Kgs |
High Light: | sleeve seaming machine,paper roll slitter rewinder |
Product Description
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
White Red Slitting And Rewinding Machine / Paper Roll Slitter Rewinder
Technical Parameter | |
Inner Diameter | 50-152mm |
Wall Thickness | 3-15mm |
Mother Tube Length | 1400mm |
Cutting Tube Length | 0.5-1400mm |
Cutting Blade | Single Circular Blade |
Cutting Way | Only Tube Rotates |
Cutting Speed | 1 pcs/sec. |
Knife Rest Moving Speed | 300mm/s |
Tube Fixing Way | Automatic Chuck |
Tube Loading | Manually |
Tube Unloading | Manually |
Cutting Type | Pneumatic |
Speed Regulation | By Inverter |
Operator | 1 person |
Working Air Pressure | 0.6Mpa |
Power Supply |
380V / 3 Phase / 50Hz (can be customized) |
Motor | 2.2kw Wannan | |
Inverter | 3.7kw Delta (Taiwan) | |
Servo Motor | 0.75kw Yaskawa (Japan) | |
Servo Driver | 0.85kw Yaskawa (Japan) | |
Moving Rail | ABBA(Taiwan) | |
Screw Rod | ABBA(Taiwan) | |
PLC Controller | Xinjie(can be customized) | |
Touch Screen | Xinjie(can be customized) | |
Signal Components | Omron | |
Electric Components | CHNT | |
Pneumatic Components | Jingwei | |
Machine Size | ||
Size | 2500*650*1220mm | |
Weight | 900kgs | |
Enclosed Spare Parts | ||
Extra Blades | 3 pieces | |
Tool | 1 set | |
Mandrel Shaft | 2 pieces |
Feature:
- pipe cutting speed, high accuracy
- numerical control input, the length of the pipe cutting is large
- cutter shaft does not turn, the paper tube rotates, saving material
- servo CNC cutter

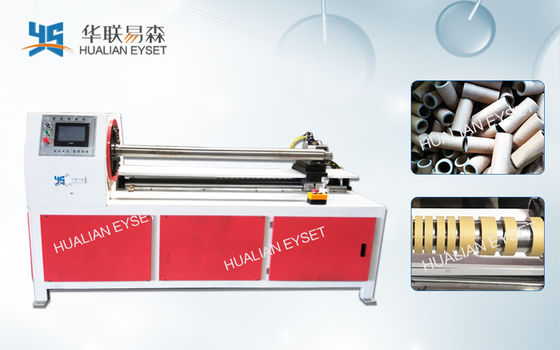

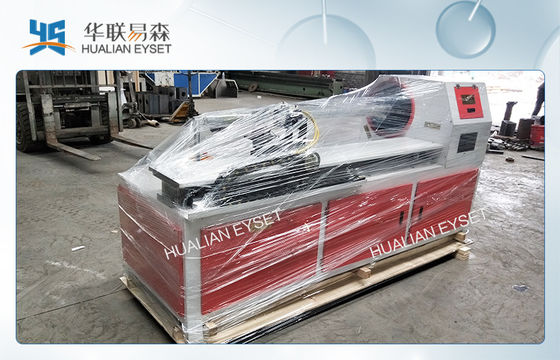

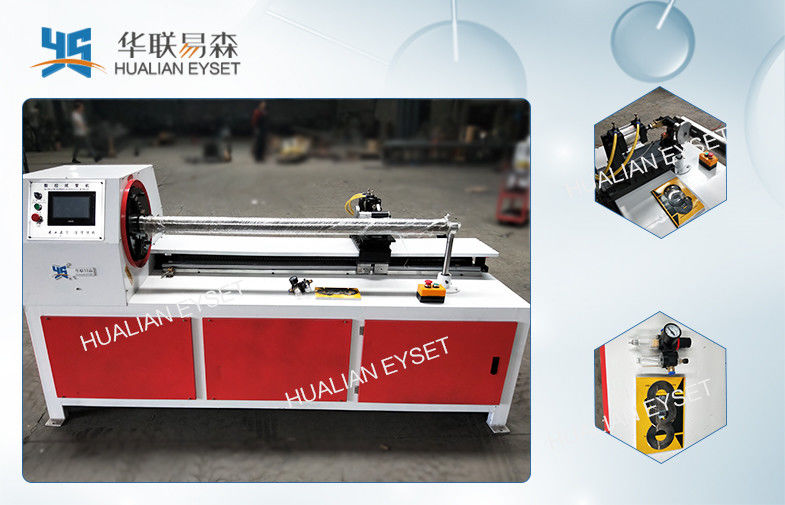

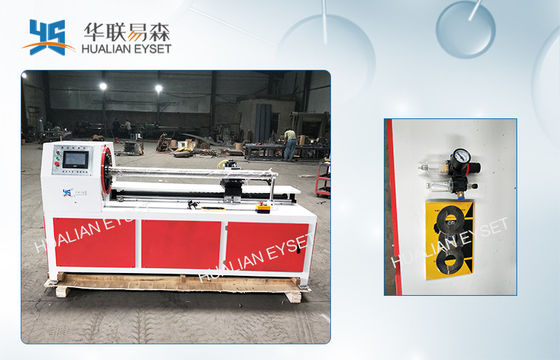

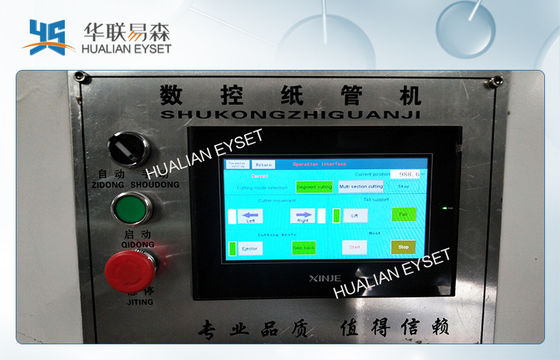

detailed picture:
