Two Dimensional Pharmaceutical Granulation Equipments Mixing Chemical Raw Materials / Food Material
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUALIAN PHARMD |
| Certification: | ISO,GMP |
| Model Number: | FD-EYH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard wooden case |
| Delivery Time: | 50 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Model Number: | FD-EYH | Loading Capacity: | 900L |
|---|---|---|---|
| Power(W): | 4.4kw | Voltage: | 380V |
| Machine Name: | Two-dimensional Mixer | Product Name: | Mixing Pharmaceutical Granulation Equipments |
| High Light: | high speed mixing granulator,vibrating fluid bed dryer |
||
Product Description
Two Dimensional Pharmaceutical Granulation Equipments Mixing Chemical Raw Materials / Food Material

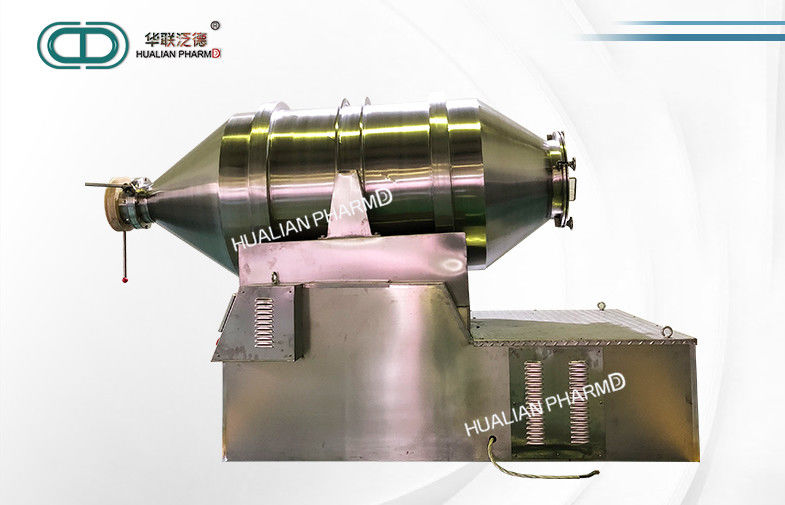

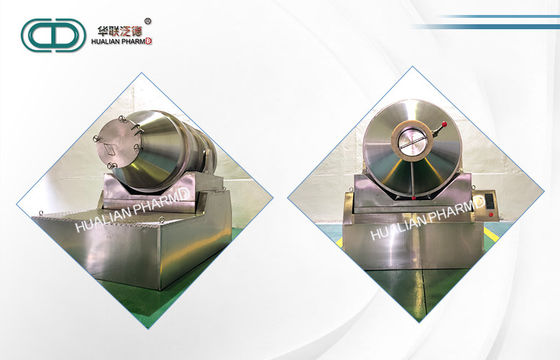

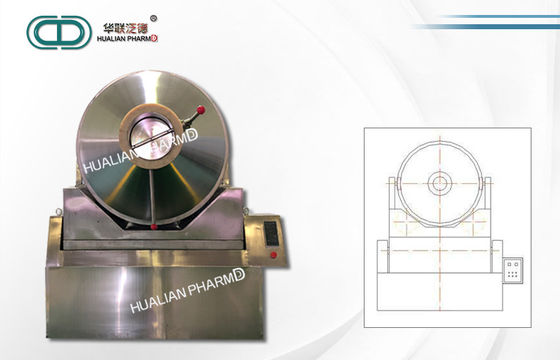

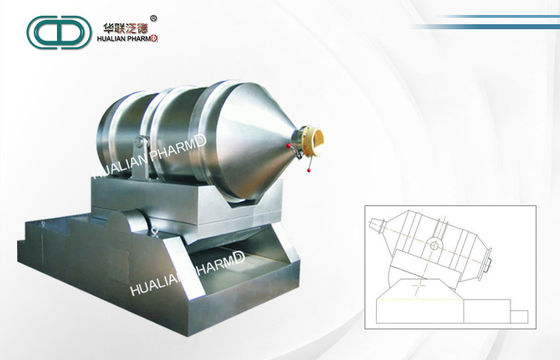

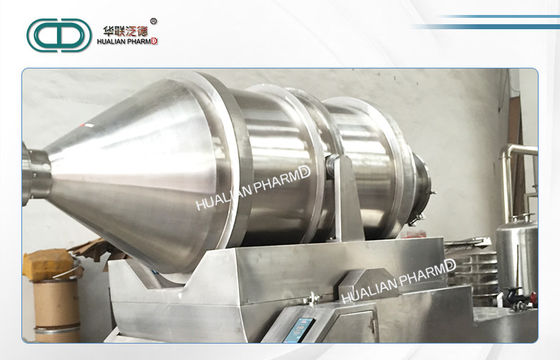

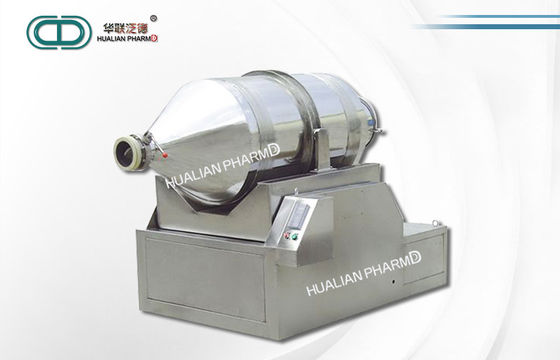

EYH Series Two Dimensional Mixer
Principle:
EYH Series Two Dimensions mixer mainly consists of three big parts. rotatingcylinder,swinging rack and frame.
The rotating cylinder lies on the swingingrack, supported by four wheels and its axial fixation is done by two stop wheelsTwo of four wheels are driven by rotating system to make the cylinder rotate.
Theswinging rack is driven by a set of crandshaft swinging bar which is mounted onthe frame and the swinging rack is supported on the frame.
Application:
This machine is suitable for many industries such as pharmaceutical industry,chemical industry, metallurgy industry, foodstuff industry, architecture industryand institutes, It can mix powder and granule raw materials having good fluidityand make the mixed raw materials reach the best mixing state.
Technical characters:
The rotating cylinder of EYH Two Dimensionals Mixer can achieve two motions atthe same time. One is the rotation of the cylinder and the other is swinging of thecylinder along the swinging rack. The rotating cylinder of EYH Two Dimensionals Mixer can achieve two motions atthe same time. One is the rotation of the cylinder and the other is swinging of thecylinder along the swinging rack. As the result of these two motions,materials can be mixedfully in a short time. EYH Two Dimensions Mixer is suitable for mixing of allpowder and granule materials.
Main Technical Parameter:
| Spec | gross volume (L) |
feed rate | feed weight (Kg) |
Overall dimensions(mm) Epower(kw) | |||||||
| A | B | C | D | M | H | rotation | sway | ||||
|
EYH100
|
100 | 50 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 150 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 300 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 400 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 500 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 750 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 1000 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 1250 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 1500 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 2500 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 5000 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 6000 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 7500 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
Main Features:
1. Feed inlet cover is equipped with vacuum feeding interface, can be quickly connected with vacuum feeding , realizing automatic feeding, to reduce labor intensity, increases efficiency and also achieving dust - free operation, do not pollute the workshop environment, in line with GMP standard
1. Feed inlet cover is equipped with vacuum feeding interface, can be quickly connected with vacuum feeding , realizing automatic feeding, to reduce labor intensity, increases efficiency and also achieving dust - free operation, do not pollute the workshop environment, in line with GMP standard
2. Mixing barrel is equipped with the material discharging board so that the machine has large charging coefficient ,fast and uniform mixing,convenient discharging...
3. The discharging device adopts vacuum butterfly valve,with easy operation, the discharge volume can be controlled, no dust.
4. The main body of machine is made of high-quality stainless steel ,with precision polished, easy to clean smooth surface , in line with GMP requirements.
