Two Dimensional Rocking Pharmaceutical Mixing Equipment SUS316L/mixer
Product Details:
Place of Origin: | CHINA |
Brand Name: | HUALIAN PHARMD |
Certification: | ISO,GMP |
Model Number: | FD-EYH |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | standard wooden case |
Delivery Time: | 50 DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Set/Sets per Month |
Detail Information |
|||
Model Number: | FD-EYH | Loading Capacity: | 900L |
---|---|---|---|
Power(W): | 4.4kw | Voltage: | 380V,220V,440,480V |
Machine Name: | Two-dimensional Mixer | Product Name: | Two-dimensional Motion Mixer |
Mixer Type: | Planetary Mixer | Material: | Stainless Steel 304 / SUS316L |
High Light: | Rocking Pharmaceutical Mixing Equipment,SUS316L Pharmaceutical Mixing Equipment |
Product Description

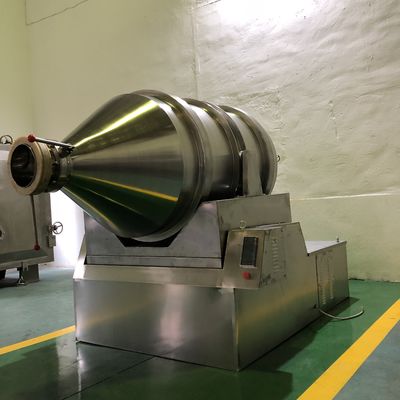

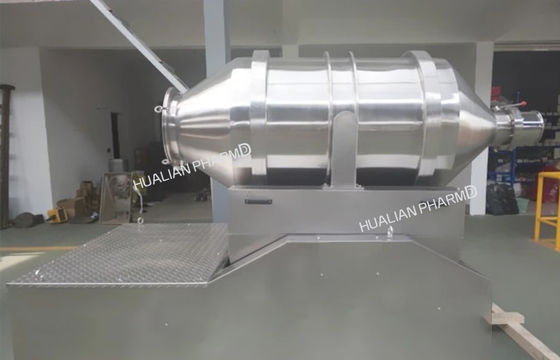

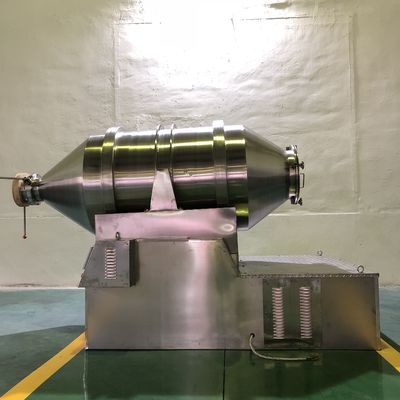

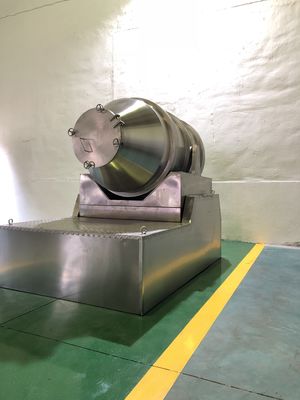

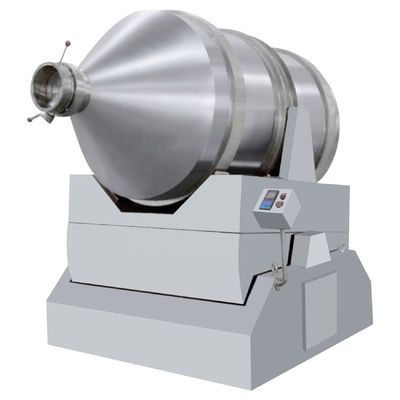

Two Dimensional Rocking Pharmaceutical Mixing Equipment SUS316L/mixer
2D Motion Dimension Mixer Two Dimension Rocking Mixer Dimensional
Features
The drum of the two-dimensional mixer can perform two movements at the same time, one for the rotation of the drum and the other for the swing of the drum with the swing frame.
The mixture is rotated, inverted, and mixed with the drum in the drum, and the mixing motion of the left and right back and forth occurs with the swing of the drum.
Under the joint action of the two movements, the material is obtained in a short time.
Two-dimensional mixer is suitable for mixing a variety of powder and granular materials.
Principle:
Application:

Technical characters:
Main Technical Parameter:
Spec | gross volume (L) |
feed rate | feed weight (Kg) |
Overall dimensions(mm) Epower(kw) | |||||||
A | B | C | D | M | H | rotation | sway | ||||
EYH100
|
100 | 50 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
EYH300 | 300 | 150 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
EYH600 | 600 | 300 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
EYH800 | 800 | 400 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
EYH1000 | 1000 | 500 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
EYH1500 | 1500 | 750 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
EYH2000 | 2000 | 1000 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
EYH2500 | 2500 | 1250 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
EYH3000 | 3000 | 1500 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
EYH5000 | 5000 | 2500 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
EYH10000 | 10000 | 5000 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
EYH12000 | 12000 | 6000 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
EYH15000 | 15000 | 7500 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
1. Feed inlet cover is equipped with vacuum feeding interface, can be quickly connected with vacuum feeding , realizing automatic feeding, to reduce labor intensity, increases efficiency and also achieving dust - free operation, do not pollute the workshop environment, in line with GMP standard
