3D 99.9% Uniformity Powder Mixer for Pharmaceutical Vacuum Feeding
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUALIAN PHARMD |
| Certification: | ISO,GMP |
| Model Number: | FD-SYH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard wooden case |
| Delivery Time: | 50 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 |
|
Detail Information |
|||
| Model Number: | FD-SYH | Power(W): | 0.37-11kw, |
|---|---|---|---|
| VoltageVoltage: | 220v-480v | Max. Loading Volume (L): | 80 L |
| Product Type: | Medicine , Chemical , Food | Product Name: | Pharmaceutical Mixing Equipment |
| Mixing Precision: | >99.9% | Material: | Stainless Steel |
| Application: | Powder, Medicine Processing, Chemicals Processing, Food Products | Applicable Industries: | Pharmaceutical |
| High Light: | 3d Motion Powder Mixer Pharmaceutical,99.9% Powder Mixer Pharmaceutical,GMP Mixing Equipment In Pharmaceutical Industry |
||
Product Description

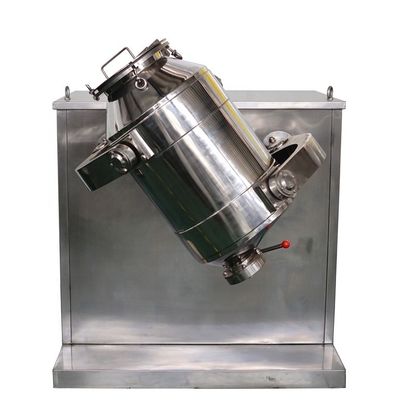

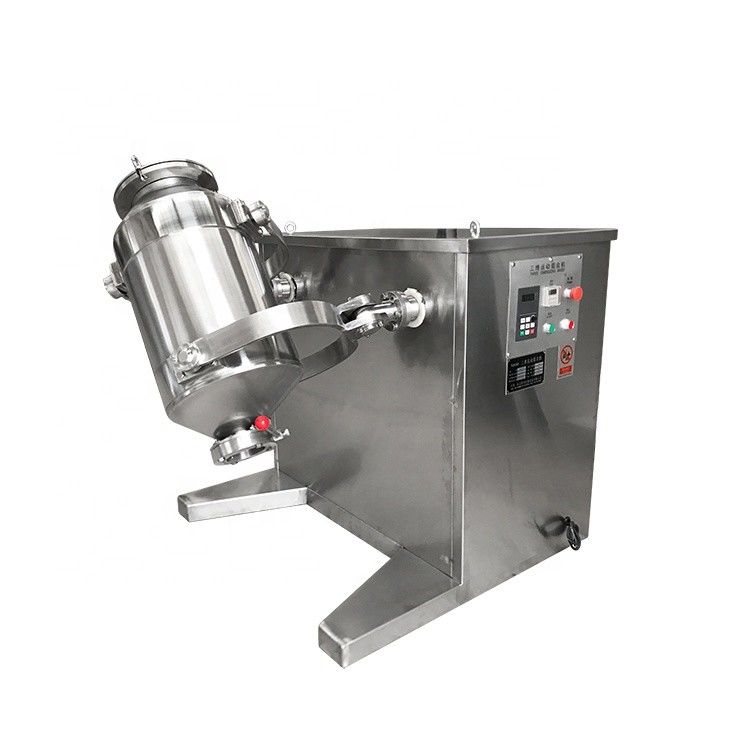

3D 99.9% Uniformity Powder Mixer for Pharmaceutical Vacuum Feeding
SYH Model 3d Motion Blender Mixing / SYH-200 Powder Mixer Machine
This machine mix the barrel body and have multi-direction movements of operating in running, make various kinds of supplies accelerate mix the barrel body and having multi-direction sportsing in the course of mixing, make a barrel of supplies in the body mix and click more alternately, it is high to mix the result, the degree of consistency can be up to 99. 9% more than most heavy to load coefficient can up to 0 . 9 (ordinary mixer is 0. 85),Mix time short , with high efficiency. applied to pharmacy , chemical industry , food , metallurgy , light industry and R&D institution extensively, can mix the powdery with better mobility or the supplies of the particle form very evenly , the supplies after enabling mixing can reach the best state of mixing .
Advantages:
1.The machine can perform a very uniform mixing of power or granule materials with a good mobility.
2.Because the mixing tank rotates in multiple directions, there is no centrifugal force acting on the material, as well as no phenomena of gravity segregation, delamination and accumulation of materials so the mixing rate can be up to 99.9%.Therefore, it is an ideal product currently compared with other various mixers.
3.The tank has high loading rate max.80% , so that its mixing efficient is high and short mixing time.
4.The barrel transitional radius everywhere, and also has been polished ,which has achieved GMP quality standards.
1). Uniformity: 99.9%
2). The effective loading rate of the container: 80%
3). The machine height is short
4). Partition wall installation can be realized
5). Stepless speed regulation can be achieved
6). Long life and low noise
7). High mixing efficiency
8). Vacuum feeding and lifting machine feeding are available.
Principle:
When it works, the mixer is provided with three-dimensional movement, and carries out revolution and rotation. The mixer has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.
| Type | SYH-5 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1500 | |
| 100 | 200 | 400 | 600 | 800 | 1000 | 1500 | |||
| Max loading volume (L) | 4 | 60 | 120 | 240 | 360 | 480 | 600 | 900 | |
| Max loading weight (kg) | 5 | 40 | 80 | 160 | 240 | 320 | 400 | 600 | |
| Spindle rotatio n speed (r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 | 10 | |
| Motor power (kw) | 0.37 | 1.5 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | |
| Overall dimensions (mm) | L | 600 | 1200 | 1300 | 1500 | 1800 | 1900 | 1950 | 2600 |
| W | 1000 | 1800 | 1600 | 2200 | 2400 | 2500 | 2500 | 2500 | |
| H | 1000 | 1500 | 1500 | 1500 | 1650 | 2100 | 2350 | 2400 | |
| Weight (kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 | 2500 | |
