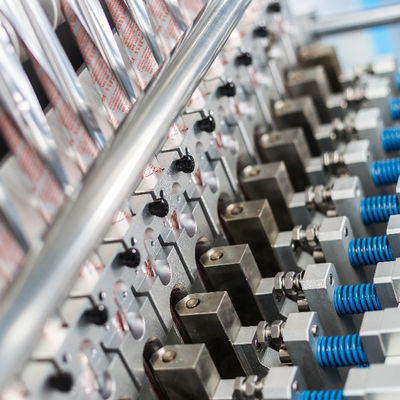

Four Side Sealing Multi Line Shampoo sachet paste material Packing Machine
|Place of Origin:||CHINA|
|Brand Name:||HUALIAN PHARMD|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 SET|
|Packaging Details:||standard export wooden case|
|Delivery Time:||60 days|
|Payment Terms:||L/C, T/T, D/A|
|Supply Ability:||50 sets/month|
|Pouch Length:||40-120mm||Pouch Width:||35-120mm|
|Packing Speed:||300-800 Bags/min (depending On The Material And Pouch Size)||Bag Film Material:||PET/AL/PE、PET/PE、NY/AL/PE、NY/PE And So On|
|Packing Dosage:||1-40ml/bag||Max Film Width:||1200mm|
|Max Film Diameter:||ø300mm||Film Core Diameter:||ø 70-76 Mm|
sachet packaging equipment,
pellet packaging machine
Four Side Sealing Multi Line Shampoo sachet Packing Machine
1. Scope of application
DXDO-J1200 fully automatic catsup four-side sealing and multi-line packing machine is suitable for packing catsup, thick paste material in the pharmacy, food, daily chemical and other industries, automatic packing into sachet with Measurement requirement, such as Peanut oil, salad oil, tomato paste,Curry sauce,Cough syrup; Shampoo, oil, Vaseline, creams of all kinds, and much more.
This machine is a design of mechanical and electrical integration, controlled by the PLC, operated by the touch-screen, driven by the servo motor, governed by the frequency converter, centrifugal sanitation pump constant-voltage for feeding,tracking by Photoelectric and so on, so the machine with compact structure, easy to operate, coordinated act, have a high degree of automation, and that the packing bag is smooth and attractive.
► Advanced performance, high power, low noise, compact structure, Operate steadily , easy to maintain, and has a long life span.
► Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.
► A high degree of automatic.machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing,notch cutting, cutting Dotted line, transverse cutting to outputting finished sachets.
► High precision whole rolling type heat sealing roller are adopted as sealing mould. Four side sealing, multi-line sachets form. Because catsup material will easily leak in sealing side, an extra smooth bag shape, delicate and beautiful, packaging with high efficiency.
► Fast and convenient to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting and transverse cutting through man-machine interface.
► Accurate in measurement, According to different paste viscosity, specifically designed of reciprocating plunger pump with rotate valve controlling, matched with stroke adjustment air cylinder feeding, each line's dosage can be adjusted easily and accurately.
► A PLC is used for automatic control, Each actuating mechanism adopt servo motor to driver, it is precise in automatic in step positioning, reliable performance, convenient to operate, and fully automatic.
► Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function..
► Adaptability of the package film. the sealing temperature of machine is with automatic control, and with high control accuracy (± 1C °). Suitable for most complex film packing film in home and abroad, as PET/AL/PE,PET/PE,NY/AL/PE,NY/PE and so on.
► Extra function set up, for example, sachet cutting can can choose dotted line knife, flat cutting knife or abnormal shape knife. Printing can can choose embossing(hard batch) or ink wheel printer. And the matching of alarm requirements and so on.
It is suitable to pack catsup materials in the fields of pharmacy industry, food industry and daily industry. Such as ketchup, shampoo, honey, jam, cream of all kinds.
4. Main technological parameters
|Items / Model||DXDO-J1200E|
|Pouch length||50~300mm (adjustable)|
|Pouch width||35~105mm ( if change width, should change bag mould)|
|Packing speed||20~60times/nim(depend on pouch size and material)|
|Applicable film||PET/AL/PE PET/PE NY/AL/PE NY/PE|
|Max film width||1200mm|
|Max film diameter||Φ500mm (do as customer’s request)|
|Film core diameter||Φ75mm (do as customer’s request)|
|Electric source||380V50Hz (do as customer’s request)|
|Total power||15 kw|
|Package size||2200x1500x2300mm (L×W×H)|
