Multi line Particle Rapid 4 Side sachet filling Sealing Packaging Machine Ss304 Shell DXDO-K900F
Product Details:
Place of Origin: | CHINA |
Brand Name: | hualian yimin |
Certification: | CE |
Model Number: | DXDO-K900F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | USD 38000/SET |
Packaging Details: | standard wooden case |
Delivery Time: | 40 days |
Payment Terms: | L/C, T/T |
Detail Information |
|||
Application: | Beverage, Chemical, Commodity, Medical | Packaging Material: | Complex Film |
---|---|---|---|
Type: | Other | Packaging Type: | Bags, Film, Pouch, Sachet |
Automatic Grade: | Automatic | Driven Type: | Servo Motor |
Voltage: | 380V/50HZ | Power: | 12kw |
Model Numbe: | DXDO-K900F | Machine Weight: | 1200kgs |
Service: | All Life | Usage: | Granule Mareial As Sugar, Salt, Coffee |
High Light: | 4 side seal packaging machine,pellet packaging machine |
Product Description
DXDO-K900F automatic four - side sealing multi - row particle rapid packaging machine
Characteristic:
1. Extremely efficient, high power, low noise, easy to maintain and has a long life span.
2. Synchronized using five-axis servo-driven, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning. Increase packaging speed premise to ensure the quality of packaging.
3. Using high precision rolling heat sealing roller as a whole as a seal mould sealing edges, exquisite bag-shaped flat sealing strong beautiful, good quality, high efficiency.
4. Easy and fast to adjust, it can step- less adjust pouch length without changing the mould. Transverse and longitudinal seal, filling material,batch number,dash, cutting and other executive bodies can be adjusted through human-machine interface.
5. Packaging speed, filling precise metering. Reciprocating type feeding mechanism, which shirk responsibility structure,shake off assembling simple,easy cleaning and maintenance. Equipped with triangle measuring cup measurement, can be adjusted infinitely fine, high precision.
6. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.
7. The machine with film automatic correction and damping mechanism, to ensure the straightness and tension
stability of film, and make the pouch more smooth and beautiful. The model line additional membrane automatic deviation correction and line-film damping mechanism to ensure straightness of line film stability with the tension, thereby greatly improving the level of smoothness and beauty bag-shape.
8. Adaptability of the package film, the sealing temperature of machine is with automatic control, and has high
control accuracy (± 1C °). Suitable for most complex film packing film in home and abroad, such as PET/AL/PE,
PET/PE,NY/AL/PE,NY/PE and so on.
9. Extra functions set up, for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc, and can choose different kinds of alarm requirement.

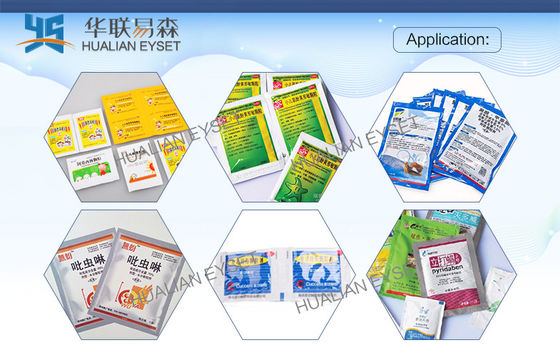

Use:
DXDO-K900F fully automatic granule four-side sealing packing machine is suitable for packing loose,non sticky granule material in the medicine,food, chemical and other industry such as Pellet, monosodium glutamate, white sugar, Soup season, oatmeal, seed, coffee, cold powder etc.
Main technical parametrs:
Model | DXDO-K900F |
Pouch length | 50~300mm( Pouch length can change) |
Pouch width | 50-105mm |
Packing speed | 120times/min depend on pouch size and material |
Filling capacity | 1-50ml |
Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE |
Max width of film | 900mm |
Max film diameter | 300mm |
Film core diameter | 75 mm |
Electric power | 380V50Hz (do as customer’s request) |
Total Power | 12KW |
G.W | 1500KG |
Package size |
(L)1500mm×(W)1540mm×(H)2200mm |
Equipment delivery details :
Q1. Pre-sale service:
A1: Please offer us detail pouch size, filling capacity, speed request etc, Then will give you good quotation.
Q2. In-sale service:
A2: After placing order to our produce department, we will follow well your orders and inform you the production status. We will supply you photos
Q3. After-sale service:
A3: The machine will have one year warranty which will begin from the customer receive the machines. During the warranty year we will replace parts which are damaged (except man-make damage) to you.
Q4: What is the packing machines used for?
A4: Usually we manufacture the packing machines according to customers' requirement, it is suitable for packing powder, granules, liquid, paste into small sachet.
Q5: How to install the machines?
A5: two ways: 1, customer send technician to our factory to learn how to adjust machine, we train them with free.
2, we can send our engineer abroad to adjust machine and train workers.
Q6: What to do if the machines don't work appropriately?
A6: Generally, you will find the solutions in the manual. But if still can not solve the problem, please contact with the after-sale service department or the sales person by email or phone. We will reply you within 24 hours.
Q7: Can we invite your engineer to our company to install or solve the problem when necessary?
A7: Sure, we can send our engineer to serve you. Customer should be afford the visa, two ways tickets, accommodation and labor charge 100 USD per day.
Q8: What are the payment terms?
A8: TT and irrevocable 100% LC are acceptable. If pay by TT, 30% down payment before producing, 70% balance pay before arranging shipping.
Q9: What's delivery time?
A9: Normally delivery time is about 50-60 days after receiving down payment for one set packing system, depend on customer's requirement.
