Small Tomato Sauce PE PET AL Pouch Filling And Packing Machine 120mm
Product Details:
Place of Origin: | CHINA |
Brand Name: | HUALIAN PHARMD |
Certification: | CE,ISO |
Model Number: | DXDO-J1200E |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 SET |
---|---|
Price: | USD 56,000.00~65,000.00/set |
Packaging Details: | standard export wooden case |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T, D/A |
Supply Ability: | 50 sets/month |
Detail Information |
|||
Pouch Length: | 40-120mm | Pouch Width: | 35-120mm |
---|---|---|---|
Packing Speed: | 300-800 Bags/min (depending On The Material And Pouch Size) | Bag Film Material: | PET/AL/PE、PET/PE、NY/AL/PE、NY/PE And So On |
Packing Dosage: | 1-40ml/bag | Max Film Width: | 1200mm |
Max Film Diameter: | ø300mm | Film Core Diameter: | ø 70-76 Mm |
Total Power: | 17kw | ||
High Light: | PE Pouch Filling and Packing Machine,120mm Pouch Filling and Packing Machine,Ketchup Sachet Packing Machine |
Product Description
Small Tomato Sauce PE PET AL Pouch Filling And Packing Machine 120mm
Small Ketchup Sachets Tomato Sauce Pouch Filling and Packing Machine
1. Scope of application:
DXDO-J1200 fully automatic catsup four-side sealing and multi-line packing machine is suitable for packing catsup, thick paste material in the pharmacy, food, daily chemical and other industries, automatic packing into sachet with Measurement requirement, such as Peanut oil, salad oil, tomato paste,Curry sauce,Cough syrup; Shampoo, oil, Vaseline, creams of all kinds, and much more.
2.Features:
1) Extremely efficient, high power, low noise, easy to maintain and has a long life span.
2) Roller heat sealing, four side sealing, high speed and multi-line packing, and with bags coming smoothly and fine, high packing efficiency.
3) Easy to adjust, precise in measurement, requires a simple procedure for pouch length adjustment without changing the mould. Functions can be regulated for longitudinal sealing, transverse sealing, filling, notch cutting, longitudinal cutting, fracture line making and transverse cutting with the advanced technology for our man-machine interface.
4) Famous sevro motor driver is adopted, high-performance PLC pouch length can be setup directly at the touch screen, at the same time longitudinal sealing and transverse sealing be able to auto in-phase tracking. It saves more time and material compare with mechanical transmission, and with bag pulling smoother and even easier to adjust.
5) Accuracy in page correcting, automatic counting, and photoelectric tracking system is adopted to ensure the automatic correcting the double face printing design on packing bags, precise in counting.
6) It has reliable performance, convenient to operate and super automatic. A PLC is used for automatic controlling and frequency changer is for step-less speed adjusting.
7) Applicable to a wide using: suitable for most of the complex film packing materials.
3.Usage:
It is suitable to pack catsup materials in the fields of pharmacy industry, food industry and daily industry. Such as ketchup, shampoo, honey, jam, cream of all kinds.
4.Main technological parameter
Pouch length | 50-300mm (adjustable) |
Pouch width | 35-105mm ( if change width, should change bag mould) |
Max packing speed | 30-60time/min depend on punch size and material |
Filling capacity | 1-100ml /bag |
Sealing way | 4 side sealing |
Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE |
Max film width | 900mm |
Max film diameter | Φ300 mm |
Film core diameter | Φ75 mm |
Electric source | 380V 50Hz (do as customer’s request) |
Total power | 12 Kw |
G.W. | 1200 Kg |
Package size | 2200*1500*2300(L×W×H) |

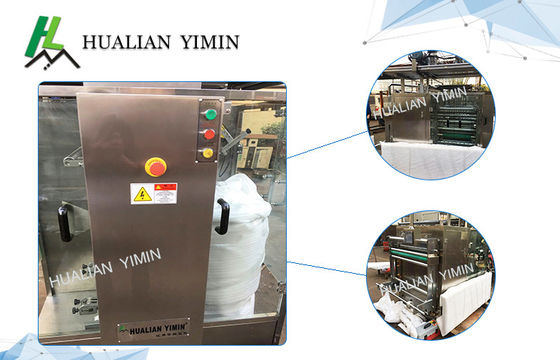

5.Equipment details:
6.Packing and delivery of equipment:
Q1. Pre-sale service:
A1: Please offer us detail pouch size, filling capacity, speed request etc, Then will give you good quotation.
Q2. In-sale service:
A2: After placing order to our produce department, we will follow well your orders and inform you the production status. We will supply you photos
Q3. After-sale service:
A3: The machine will have one year warranty which will begin from the customer receive the machines. During the warranty year we will replace parts which are damaged (except man-make damage) to you.
Q4: What is the packing machines used for?
A4: Usually we manufacture the packing machines according to customers' requirement, it is suitable for packing powder, granules, liquid, paste into small sachet.
Q5: How to install the machines?
A5: two ways: 1, customer send technician to our factory to learn how to adjust machine, we train them with free.
2, we can send our engineer abroad to adjust machine and train workers.
Q6: What to do if the machines don't work appropriately?
A6: Generally, you will find the solutions in the manual. But if still can not solve the problem, please contact with the after-sale service department or the sales person by email or phone. We will reply you within 24 hours.
Q7: Can we invite your engineer to our company to install or solve the problem when necessary?
A7: Sure, we can send our engineer to serve you. Customer should be afford the visa, two ways tickets, accommodation and labor charge 100 USD per day.
Q8: What are the payment terms?
A8: TT and irrevocable 100% LC are acceptable. If pay by TT, 30% down payment before producing, 70% balance pay before arranging shipping.
Q9: What's delivery time?
A9: Normally delivery time is about 50-60 days after receiving down payment for one set packing system, depend on customer's requirement.
