Product Details:

Place of Origin: CHINA
Brand Name: HUALIAN PHARMD
Certification: ISO,GMP
Model Number: FD-FL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: standard wooden case
Delivery Time: 50 DAYS
Payment Terms: L/C, T/T
Supply Ability: 80
Get Best Price Contact Now

Detail Information

Model No: FD-FL Voltage: 380V/220V
Power(W): 11kw Dimension(LxWxH): 1850x1400x3000
Weight(kg): 1100
High Light:

industrial vacuum dryer

,

film coating machine

Product Description

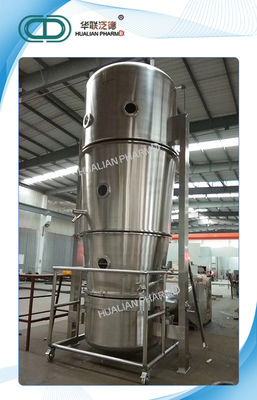

FL Series Fludized Granulator dryer FD-FL stainless steel Category boiling dryer



FL Series Fluidized Granulator

Introduction:

The powder granule in the container(fluidization ) appear in the state of fluidization . It is Pre-heated and mixed with clean and hot air, At the same time, the solution of adhesive is fogged and sprayed into the container . The particle clumped into granules containing adhesive, Under the continuous drying of hot air , Moisture in the granulation is evaporated and the adhesive solidified. The continuously repeated movements formed the ideal size uniform, Micro-porous spherical particles

Stainless Steel Pharmaceutical Machinery / Boiling Fluidized Bed Granulator/fluidizer dryer 0

Application​:

1. Phamaceutical industry: tablet, capsule, low sugar or no sugar granule ofchinese medicine.
2. Foodstuff; cocoa, coffee, milkpowder, juice of granulate, flavoring and so on.
3. Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
4. Pharmaceutical industry: power or granule material.
5. Coating: Granule, protecting coat of pellet, spare color, slow release film, bowel-dissolve coating, ect

Stainless Steel Pharmaceutical Machinery / Boiling Fluidized Bed Granulator/fluidizer dryer 1

Stainless Steel Pharmaceutical Machinery / Boiling Fluidized Bed Granulator/fluidizer dryer 2

Technical characters:

· Through powder Granulation, the fluidity is improved and the dust is reduced;
· Through powder Granulation, its solving property is improved;
· The mixing, Granulation and drying can be completed in one step inside themachine;
· The operation of equipment is safe because the anti static filtering cloth isadapted;
· The operating personnel can not be damaged if explosion take place becausethere is releasing hole;
· The equipment has no dead corner. Therefore the loading and unloading arequick and light and clean. It can meet the requirements of GMP.

Stainless Steel Pharmaceutical Machinery / Boiling Fluidized Bed Granulator/fluidizer dryer 3

Main Technical Parameter:

ltem Uni Type
3 5 15 30 60 120 200 300 500
Container Volume L 12 22 45 100 220 420 670 1000 1500
Diameter mm 300 400 550 700 1000 1200 1400 1600 1800
Capability Min Kg 1.5 4 10 15 30 80 100 150 250
Max Kg 4.5 6 20 45 90 160 300 450 750
Fan Capacity m³/h 1000 1200 1400 1800 3000 4500 6000 7000 8000
Pressure mmH₂O 375 375 480 480 950 950 950 950 950
Power Kg 3 4 5.5 7.5 11 18.5 22 30 45
Steam expenditure Kg/h 15 2.3 42 70 140 211 282 366 451
Compressed air expenditure m³/min 0.9 0.9 0.9 0.9 0.1 1.0 1.1 1.5 1.5
Weight of the main body Kg 500 700 900 1000 1100 1300 1500 1800 2000
Steam pressure Мра 0.3~0.6
Temperature adjustable at the range from room temperature to 120°C
Working time​ min decided in accordance with the proplerties of raw materials
Fіеld​ % ≥99
Noise dB(A) When installation,main machine is separated from fan
Size(LxWxH) m

1.0x0.6

x2.1

1.2x0.7

x2.1

1.25x0.9

x2.5

1.6x1.1

x2.5

1.25x0.9

x2.5

2.2x1.65

x3.3

2.34x1.7

x3.8

2.8x2.0

x4.0

3x2.25

x4.4

Stainless Steel Pharmaceutical Machinery / Boiling Fluidized Bed Granulator/fluidizer dryer 4



Schematic of installation:
