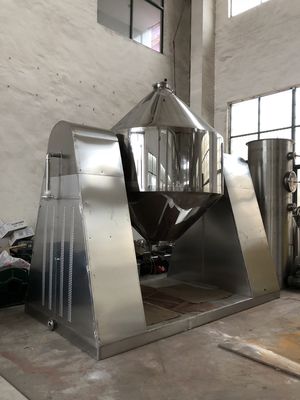

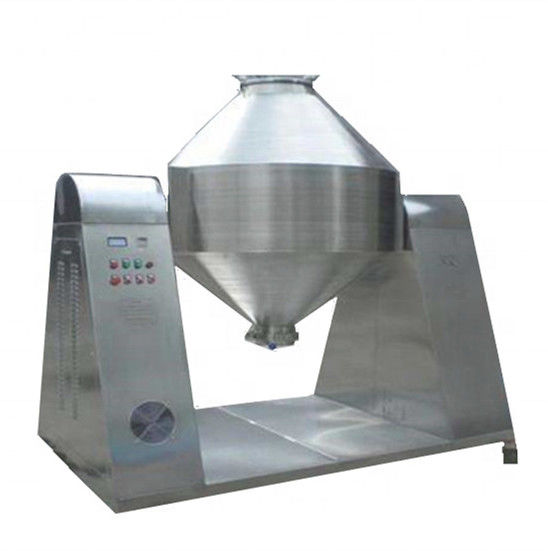

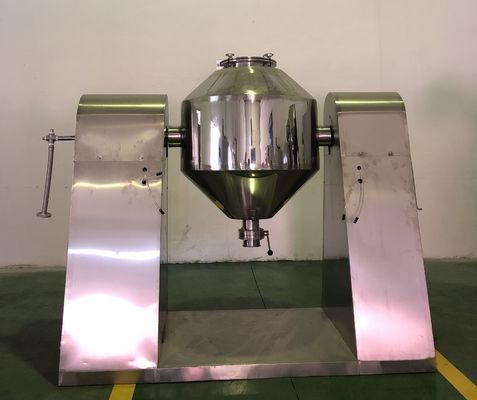

440v /220v Rotary Double Cone Industrial Vacuum Dryer In Food Industry
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUALIAN PHARMD |
| Certification: | ISO,GMP |
| Model Number: | GD-SZG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard wooden case |
| Delivery Time: | 50 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Sets per Mont |
|
Detail Information |
|||
| Type: | Vacuum Drying Equipment | Power(W): | 220v,380v,440v,480v |
|---|---|---|---|
| Weight: | 550kgs | Application: | Chemical,pharmaceutical And Foodstuff Industries |
| Heating Source: | Steam, Thermal Oil, Hot Water Etc. | Material: | 304/316L Stainless Steel |
| Max Loading Volume: | 50-2500L | Rotary Power: | 0.75-7.5kw |
| High Light: | 440v Double Cone Industrial Vacuum Dryer,Rotary Drum Industrial Vacuum Dryer |
||
Product Description
440v /220v Rotary Double Cone Industrial Vacuum Dryer In Food Industry
Vacuum Rotary Double Cone Dryer for Chemical , Medicine , food powder
Main Applications:
It is suitable for the raw materials that need to concentrate, mix and dry at low temperature(eg. biochemistry products in chemical, pharmaceutical and foodstuff indusries).
1. materials that are easy to oxidize
2. materials that are easy to volatilize
3. materials that having strong heat sensitive or toxic
4. materials that should not destroy its crystal in drying
Principles:
1. heat source pass through the sealed jacket
2. the heat will be transmitted to the raw material to be dried through inner shell
3. under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. then the purpose of reinforced drying can realized
4. the material is at a vacuum state, the drop of steam jpressure makes the moisture at the surface of raw material become saturation and will evaporate
5. the solvent will be discharged through vacuum pump
6. the inner moisture of raw material will infiltrate, evaporate and discharge continuously. these three processes are carried continuously and the purpose of drying can be realized within a short time
Main features
1. Drying or extracting water or solvents from humid powder and small granule products
2. Drying Chamber volume:100-5000L
3. GMP design
4. Heat supply can be steam,hot water and hot oil.
Working Principle
Technical Advantages
1) Multi-functional: The central body is a bi-conical chamber which can rotates with different speed and direction. Except drying or extracting solvents, it also can be used as an effective fast blender or homogenizer.
2) GMP design: The drying chamber is made according to GMP standard which is mirror polished, no dead corners for washing or cleaning and safe for both operators and products.
3) Multi-product: The drying chamber can be lined with glass or enamel interior surface for high corrosive materials
4) No-lumps: High speed cutters can be equipped to break the lumps or agglomerates which can considerably shorten the drying time and ensure uniform drying.
5) Effective filtering system: The three-head filtering unit can perfectly filter out the powder and just let solvent vapors go through with very low pressure drop.
6) Easy-operation: Vacuum conveyor can be equipped for automatic feeding and discharging.
Main Technical Parameter:
|
Itme |
||||||||||||
| Name | Unit | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Total volume | L | 100 | 200 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Working volume | L | 50 | 100 | 175 | 250 | 375 | 500 | 750 | 1000 | 1500 | 2000 | 2500 |
| Heating area | ㎡ | 1.16 | 1.5 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 10.2 | 12.1 | 14.1 |
| Speed | rpm | 6 | 5 | 4 | 4 | 4 | ||||||
| Power | Kw | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
| Rotating height | mm | 1810 | 1910 | 2090 | 2195 | 2500 | 2665 | 2915 | 3055 | 3530 | 3800 | 4180 |
| Total weight | Kg | 550 | 700 | 900 | 1100 | 1200 | 1300 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Design pressure inside the tank | Mpa | -0.09~0.096 | ||||||||||
| Design pressure of jacket | Mpa | ≤0.3 | ||||||||||
