Double Discharge Powder Compacting Press Machine High Precision GZPK-63
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUALIAN YIMIN |
| Certification: | CE,ISO |
| Model Number: | GZPK-63 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard export wooden case |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, D/A |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Model: | GZPK-63 | Product Alias: | Double Discharge Tablet Press |
|---|---|---|---|
| Main Motor Power (KW): | 11 | Maximum Prepressure (KN): | 100 |
| Weight (Kg): | 5500 | ||
| High Light: | pill press machine,powder compacting press machine |
||
Product Description

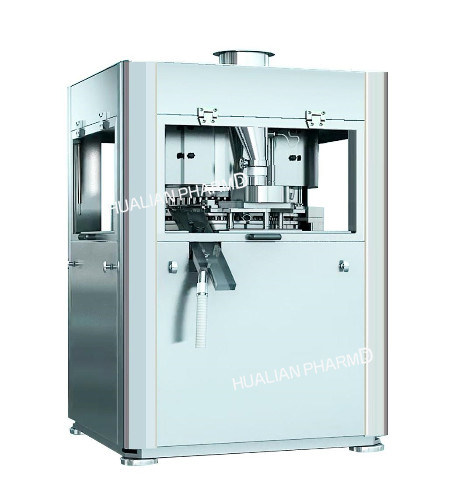

Double Discharge Powder Compacting Press Machine High Precision GZPK-63
GZPK-63 automatic high-speed double discharge tablet press automatic tablet press product description
GZPK series products have high precision, high speed automatic program control and other advantages, is the best equipment for mass tablet production.
Advanced and reasonable design is the basis of excellent quality products, many years of high-speed tablet manufacturing and development experience combined with high-tech technology, the new design concept enables us to develop and produce GZPK series double-output high-speed tablet press. Realize the standardization, modularization, intensification and serialization of the production of products.
It can be used for pressing double-layer tablets, ring tablets, circular tablets, lettering tablets and oppositetablets, which fully meet the requirements of GMP, and is suitable for high efficiency and precision tablet pressing in pharmaceutical, food and chemical industries.
MainTechnical Parameters
| Model | GZPK-51 | GZPK-65 | GZPK-73 | GZPK-83 |
| No. of stations | 51 | 65 | 73 | 83 |
| Output range(pcs/h) | 47000-470000 | 62400-6240000 | 70000-700000 | 79600=796000 |
| Rotation speed range(rpm) | 8-80 | |||
| Main pressure(kn) | 100kn | |||
| Pre-pressure(kn) | ||||
| IPT | D | B | BB | BBS |
| Max diameter(mm) | 25 | 16 | 13 | 13 |
| Max length of irregular tablet(mm) | 25 | 19 | 16 | 16 |
| Diameter of die(mm) | 38.1 | 30.16 | 24 | 24 |
| Max filling depth(mm) | 20 | 18 | 18 | 18 |
| Main motor power(kw) | 11 | |||
| Diameter of punch(mm) | 25.35 | 19 | ||
| Weight(kg) | 5500 | |||
| Dimension of machine(mm) | 1300x300x2000 | |||
| Dimension of control cabinet(mm) | 890x500x1200 | |||
Structural features
1: automatic centralized runhua system.
2: special oil discharge, dust prevention and mania prevention system.
3: high definition, isolation window design.
4: there is no dead Angle in the tablet pressing room, fully open structure, clean operation and convenient maintenance.
5: the unique four-column frame structure ensures the stability and durability of the machine.
6: the blanking heat treatment process is in sync with the international standards, and the service life is extremely long.
Company in pharmaceutical machinery, pharmaceutical equipment, pharmaceutical equipment and other aspects of professional product development department. Our strong technical force, complete mechanical processing equipment, with advanced technology, tooling, testing, measurement, means and sound quality assurance system. The factory in the introduction, digestion and absorption of advanced foreign technology, on the basis of self development and manufacturing of various kinds of QVC type pneumatic vacuum feeder magnetic material ZP type rotary tablet press press machine, powder pelleting machine, machine, mixer, crusher, coating machine, screening machine, mute pressure suction machine agent granulator granulation machine hot air circulation oven number of spin vibration sieve machine sealing machine dressing machine, tablet press mould and so on, The products are suitable for pressing traditional Chinese medicine tablets, western medicine tablets, calcium tablets, oral lozenges, spirulina tablets, milk tablets, candy tablets, effervescent tablets, chewable tablets, flavoring blocks, mothballs, aromatic tablets, disinfection tablets, fertilizer tablets, pesticide tablets, button batteries, electronic components, metallurgical powder ceramic particles, etc.
