Stainless Steel Rotary Tablet Press For 10g Chicken Block Tablet ZPT420-19B for washing powder
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HUALIAN YIMIN |
| Certification: | CE,ISO |
| Model Number: | ZPT420-19B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard export wooden case |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, D/A |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Product Model: | ZPT420-19B | Quantity Of Punch&die(Set): | 31 |
|---|---|---|---|
| Max. Pressure (KN): | 100 | Rotate Speed (r/min): | 3-35 |
| Power (KW): | 4.0 | Weight (Kilogram): | 1850 |
| High Light: | pill press machine,rotary tablet press |
||
Product Description

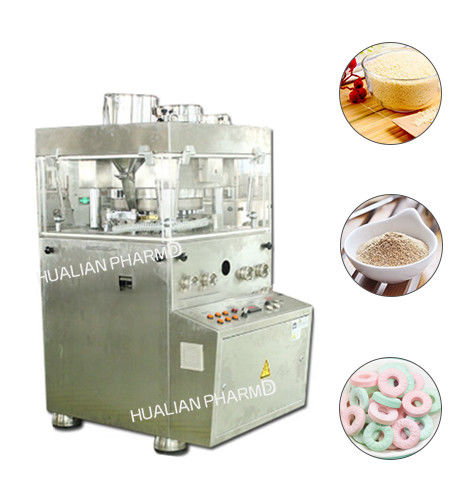

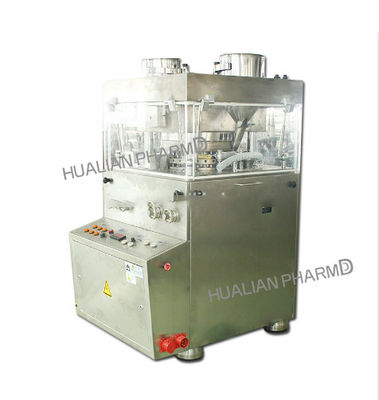

ZP420-19B CE and GMP chicken block press machine for 10g chicken block
performance
This machine is a double pressure type automatic rotating and continuous tablet pressing machine, which can press granular raw materials into
round tablets, legotype, special-shaped and double-color tablets.
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, electronics .
Main technical parameters
| Product No. | ZP19B | ZP23B | ZP25B | ZP33B |
| Quanity of Punch&Die (set) | 19 | 23 | 25 | 33 |
| Max. Pressure (KN) | 100 | 80 | 80 | 50 |
| Max. Dia. of Tablet (mm) | 45 | 30 | 25 | 13 |
| Max. Depth of Filling (mm) | 30 | 20 | 17 | 17 |
| Max. Thickness of Tablet (mm) | 15 | 12 | 6 | 6 |
| Turret Speed (r/min) | 15 | 15 | 15 | 10-30 |
| Production Capacity (pc/h) | 34200 | 41400 | 45000 | 118800 |
| Voltage (v/hz) | 380/50 | |||
| Motor Power (kw) | 4 | 4 | 3 | 2.2 |
| Overall Size (mm) | 920x890x540 | |||
| Weight (kg) | 1100 | |||
The main features
1. The outer cover is enclosed in stainless steel, and the inner surface is made of stainless steel, which can keep the surface gloss and prevent cross-contamination and meet the requirements of GMP.
2. Equipped with plexiglass perspective window, it can see the state of pressing, and the side plate can be fully opened to facilitate internal cleaning and maintenance.
3. All controllers and operating parts are arranged reasonably.
4. Frequency control device is adopted for electrical speed regulation, which is convenient to operate, stable and safe and accurate.
5. Equipped with overload protection device, it can stop automatically when the pressure is overloaded.
6. Implement electromechanical integration, using touch keys and screen display.
7. Take the lead in testing the semi-automatic lubricating device and the plexiglass dust prevention device at the upper end of the turntable.
8. The transmission system is sealed in the oil tank below the main engine, which is an independent part of safe separation, and there will be no mutual pollution, and the transmission part is soaked in the oil pool, easy to dissipate heat and wear resistance.
9. Equipped with powder absorption device, which can absorb the pressed indoor dust.
10. Vulnerable parts such as the track, feeder, hopper, transmission worm, powder gauge and ZP33 products have a general structure, which is conducive to standardization, universalization and serialization.
11, with oil disc dust ring.
12, optional automatic lubrication system, digital instrument display function.
Features:
1. The cover is made of stainless steel with close type . The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
6. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
7 .Transmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
8. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.
9 . Easily-damaging components such as upper orbit, material-adding machine, transmitting pole, powder measurer have general structures with ZP33 products which could help to be standard, general and series.

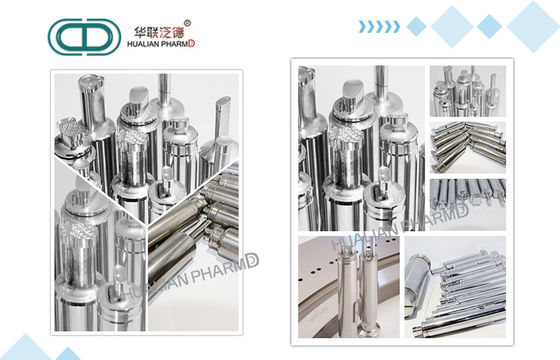

10.Mould could used generally with ZP19, ZP33, ZP35 and ZP37 Piece-pressing machine.
Our strong technical force, complete mechanical processing equipment, with advanced technology, tooling, testing, measurement, means and sound quality assurance system. The factory in the introduction, digestion and absorption of advanced foreign technology, on the basis of self development and manufacturing of various kinds of QVC type pneumatic vacuum feeder magnetic material ZP type rotary tablet press press machine, powder pelleting machine, machine, mixer, crusher, coating machine, screening machine, mute pressure suction machine agent granulator granulation machine hot air circulation oven number of spin vibration sieve machine sealing machine dressing machine, tablet press mould and so on, The products are suitable for pressing traditional Chinese medicine tablets, western medicine tablets, calcium tablets, oral lozenges, spirulina tablets, milk tablets, candy tablets, effervescent tablets, chewable tablets, flavoring blocks, mothballs, aromatic tablets, disinfection tablets, fertilizer tablets, pesticide tablets, button batteries, electronic components, metallurgical powder ceramic particles, etc.
