Automatic Grade Four Side Seal Packaging Machine Long Term Maintenance
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | hualian yimin |
| Certification: | CE |
| Model Number: | DXD-KL1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 38000/SET |
| Packaging Details: | standard wooden case |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Packaging Type: | Bags, Film, Pouch, Sachet | Packaging Material: | Complex Film And Carton |
|---|---|---|---|
| Type: | Packaging Line | Automatic Grade: | Automatic |
| Machine Shell: | 304 Stainless Steel | Voltage: | 380V 50HZ |
| Power: | 20kw | Model Numbe: | DXD-KL1200 |
| Machine Weight: | 2500KG | Dimension(L*W*H): | 2300*2100*1900mm |
| Usage: | Pack Granule Sachets Into Small Box | ||
| High Light: | sachet packaging equipment,pellet packaging machine |
||
Product Description
Automatic Grade Four Side Seal Packaging Machine Long Term Maintenance
DXD-KL1200 Electronic weighing automatic medical pharmaceutical
packaging cartoning machine production line for granule
Characteristic:

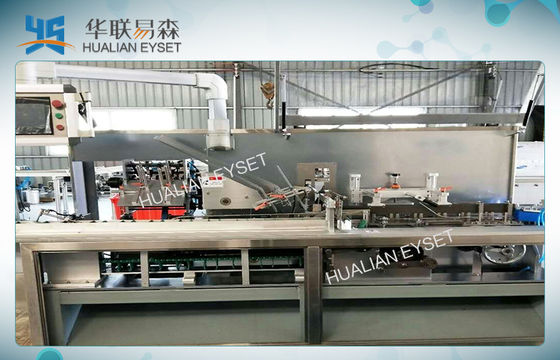

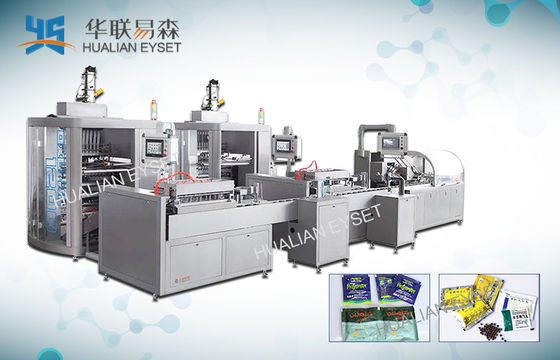

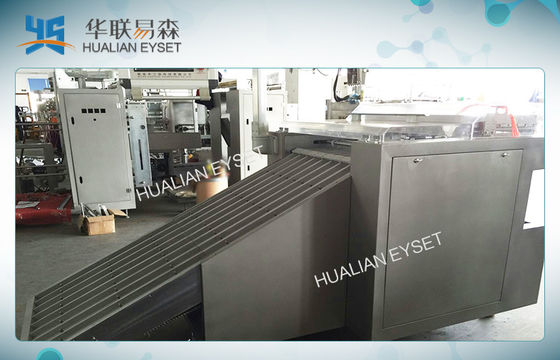

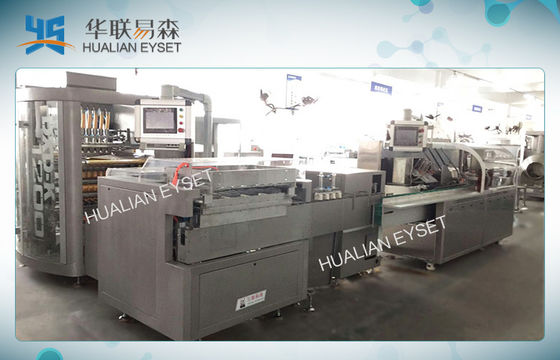

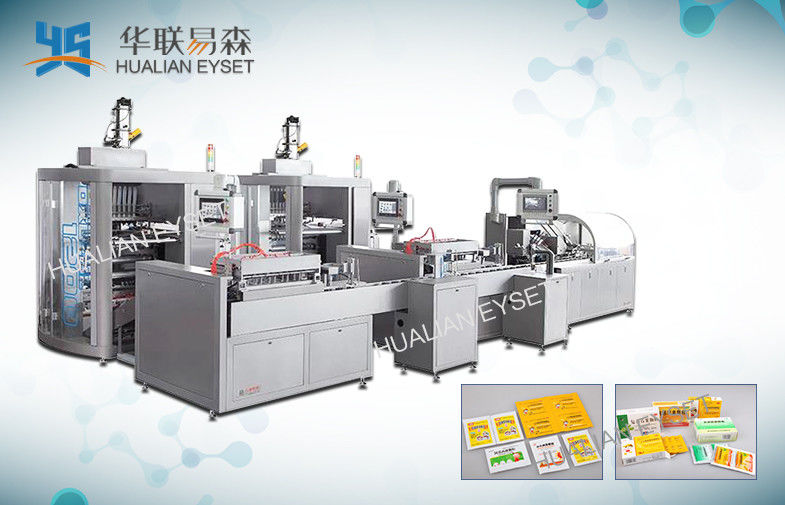

The packaging production line is mainly composed of DXDO-K1200E granule automatic packaging machine, small pouch sorting conveyor, electronic weighing machine, SYZ-120 cartoning machine, detection and pickup, online dynamic weighing removing. In order to control the precision and easy to adjust, the main parts adopt servo motor control.
Suitable for four side sealing sachet automatic connect carton packing.It applies PLC to control, photoelectric to monitor, and servo engine to drive full intelligence machine. Automatic feeding, measurement, bag making, baiting, sealing, printing batch number, vertical slicing, make easy-tearing opening, slicing, fetching bag, arranging, weighing, folding bag, removing discarded, material delivery, folding instructions, box forming, opening, material packing, printing batch number for box, sealing, removing products without instruction, etc. are all completed once, which meet the GMP production requirements, effectively save labor costs and production costs, according to the actual requirements of customers to change design.
Use:
Suitable for packing loose, non sticky granule material in the pharmacy, food, daily chemical and other industries, automatic packing into sachet with measurement requirement, then automatic with carton packing. Such as Chinese medicine infusion, coffee etc. Crystalline materials as monosodium glutamate, white sugar, salt etc. Tiny pellet materials as Chinese patent drug, Proprietary Chinese medicine, desiccant, silica gel etc.
Main technical parametrs:
| Model | DXD-KL1200 |
| Bag length | 50-150mm(L) (adjustable) |
| Bag width | 40-105mm(W) |
| Packing speed | 40-80bags/min depend on pouch size and material |
| Measuring range | 0.5-60ml/pouch |
| Cutting fashion | Flat cutting |
| Sealing fashion | 4 side sealing |
| Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE |
| Max width of film roll | 1200mm |
| Max film roll diameter | 300mm |
| Film roll core diameter | 75 mm |
| Power voltage | 380V/ 3 phase 4 wires 50HZ |
| Power | 15KW |
| Overall dimension | (L)2300mm×(W)2100mm×(H)1900mm |
| G.W | 1500KG |
|
Package size |
(L)2200mm×(W)1800mm×(H)2200mm |
Equipment delivery details:
A1: Please offer us detail pouch size, filling capacity, speed request etc, Then will give you good quotation.
Q2. In-sale service:
A2: After placing order to our produce department, we will follow well your orders and inform you the production status. We will supply you photos
A3: The machine will have one year warranty which will begin from the customer receive the machines. During the warranty year we will replace parts which are damaged (except man-make damage) to you.
Q4: What is the packing machines used for?
A4: Usually we manufacture the packing machines according to customers' requirement, it is suitable for packing powder, granules, liquid, paste into small sachet.
Q5: How to install the machines?
A5: two ways: 1, customer send technician to our factory to learn how to adjust machine, we train them with free.
2, we can send our engineer abroad to adjust machine and train workers.
Q6: What to do if the machines don't work appropriately?
A6: Generally, you will find the solutions in the manual. But if still can not solve the problem, please contact with the after-sale service department or the sales person by email or phone. We will reply you within 24 hours.
Q7: Can we invite your engineer to our company to install or solve the problem when necessary?
A7: Sure, we can send our engineer to serve you. Customer should be afford the visa, two ways tickets, accommodation and labor charge 100 USD per day.
Q8: What are the payment terms?
A8: TT and irrevocable 100% LC are acceptable. If pay by TT, 30% down payment before producing, 70% balance pay before arranging shipping.
Q9: What's delivery time?
A9: Normally delivery time is about 50-60 days after receiving down payment for one set packing system, depend on customer's requirement.
